Gas Cost of 3500kW/h Gas Heating Boiler

A 3.5 MW gas-fired hot-water boiler typically uses about 310–389 Nm³ of gas per hour. With its vacuum design and an thermal efficiency > 105 %(LHV), the T6 boiler can cut fuel costs by 10–20 %.

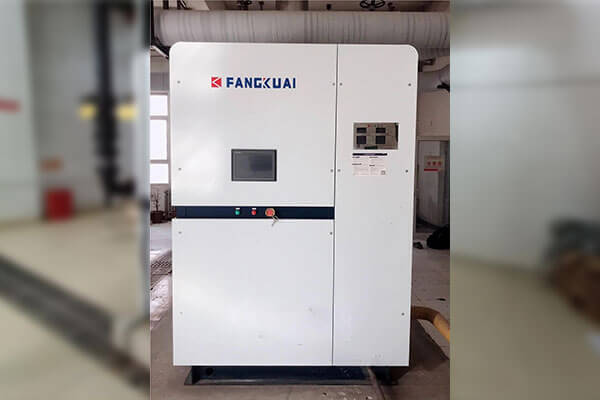

T6 Vacuum Hot Water Boiler

1. Core Formula & Variables Explained

The standard gas consumption formula is:
Gas Consumption (Nm³/h) = Boiler Power (kW) / [Gas Calorific Value (kJ/Nm³) / 3600] / Boiler Efficiency

• Boiler Power: 3,500 kW (equivalent to 3.5 MW or 3.01 million kcal/h)

• Natural Gas Calorific Value: Typically 36,000–38,300 kJ/Nm³ (8,500–9,140 kcal/Nm³)

• Boiler Efficiency: Conventional boilers: 90–98%; Condensing boilers (e.g., T6): Up to 105%+

Table: Gas Consumption Estimates for 3,500 kW Boilers under Different Efficiencies

2. Why the T6 Vacuum Boiler Achieves 310 Nm³/h?

The reported 310 Nm³/h for the T6 vacuum boiler aligns with high-efficiency engineering. Its innovations include:

• Full Premix Combustion: Pre-mixes gas/air for over 95% combustion completeness, minimizing heat loss.

• Ultraten Winged Tubes: Increases heat exchange area by 40%, enabling flue gas condensation recovery and efficiency up to 105.5%.

• Vacuum-Sealed Chamber: Prevents scaling/corrosion, maintaining efficiency over 100% long-term (lifespan 20+ years).

Compared to conventional boilers (357–389 Nm³/h), the T6 saves 12–25% gas due to these technologies.

3. Key Factors Influencing Real-World Gas Consumption

While theoretical calculations provide estimates, actual consumption varies due to:

• Gas Quality: Calorific value fluctuates by region (e.g., LNG vs. pipeline gas).

• Operational Load: Part-load operation increases specific gas use (kWh/Nm³).

• Ambient Conditions: Poor building insulation or low outdoor temperatures raise heating loads.

• Water Quality: Scaling from hard water reduces heat transfer efficiency by 5–15%.

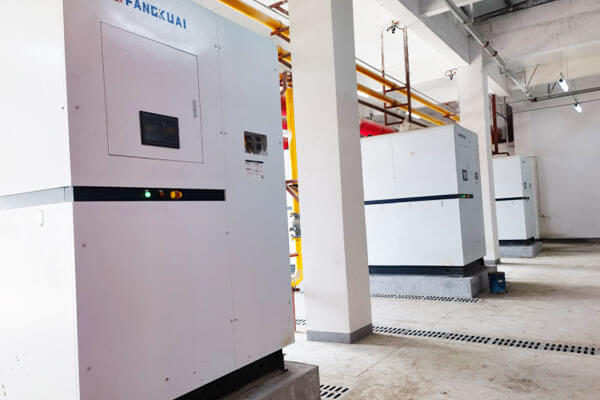

Modular System T6 Vacuum Hot Water Boiler

4. Case Study: T6 vs. Conventional Boiler Economics

A school using 2 * T6-1400 boilers + 1 * T6-700 boilers  (2 * 1.4 MW + 0.7MW)  reported 19% lower gas usage than older units. For a 3,500 kW system:

• Annual Savings: Assuming $0.42/Nm³ gas and 7,000 hours/year operation:

  • Conventional (357 Nm³/h × 7,000 h × 0.42) = $1.05 million USD

  • T6 (310 Nm³/h × 7,000 h × 0.42) = $0.91 million USD
    → Savings: $0.14 million USD

Get a boiler quote list

5. Strategies to Minimize Gas Consumption

• Install Economizers: Recover waste heat from flue gases, boosting efficiency by 4–10%.

• Adopt Climate Compensation: Modulate water temperature based on outdoor conditions to avoid overburning.

• Automate with IoT: Real-time O₂ trim controls optimize air-fuel ratios, saving 5–8% gas.

Conclusion: The High-Efficiency Advantage

The T6 vacuum boiler’s consumption of 310 Nm³/h for 3,500 kW output exemplifies how advanced condensing technology outperforms conventional systems (typically 332–389 Nm³/h). Its design leverages latent heat recovery and corrosion-resistant operation to achieve sustained ultrahigh efficiency.
