How Vacuum Boilers Heat Water? Industrial Boiler Guide

Vacuum boilers seal water inside a sturdy vessel and pull the pressure below one atmosphere, so it boils at much lower temperatures—often around 60–90 °C. By capturing and reusing the steam’s heat in a closed loop, these units shrink in size, cut energy waste, and sidestep the corrosion and scaling that plague traditional boilers.

1. How it works

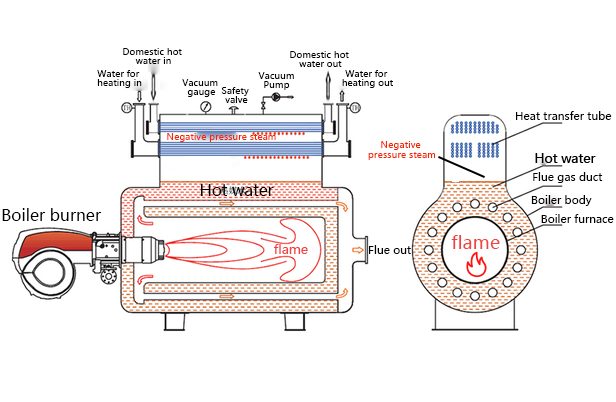

A small pump keeps the chamber under slight vacuum. When the internal water reaches its reduced boiling point—thanks to a burner or electric heater—a fraction instantly vaporizes. That steam moves through stainless-steel coils or plates, gives up its heat to the building’s water circuit, then condenses and drips back down to be reheated. This self-contained cycle runs continuously, without ever letting air in.

2. Core Components

• Vacuum Shell
  A robust pressure vessel engineered to withstand external atmospheric pressure while maintaining an internal vacuum.

• Heat Source
  A burner or electric heater that transfers energy to the primary water loop within the vacuum chamber.

• Phase-Change Chamber
  The sealed volume where treated, de-aerated water flashes into steam under reduced pressure.

• Heat Exchanger
  Typically stainless-steel coils or plate packs that separate boiler water from the system (radiator or DHW) loop, allowing indirect heat transfer during steam condensation.

• Vacuum Pump / Air Ejector
  Removes air and non-condensable gases to establish and maintain the negative pressure environment.

T6 Vacuum Hot Water Boiler

3. Key Advantages

• Intrinsic Safety
  Operating below atmospheric pressure eliminates the risk of high-pressure steam or water ejection in the event of a leak; any breach draws air in rather than expelling hot fluid.

• High Thermal Efficiency
  Low-temperature boiling reduces flue gas losses, while latent heat recovery from condensation occurs at temperatures often below the flue-gas dew point, pushing thermal efficiencies above 95%.

• Uniform Heating
  Saturated steam distributes heat evenly across the heat-exchanger surface, ensuring consistent output and rapid response compared to sensible-heat hot-water systems.

• Minimal Scaling & Corrosion
  The sealed, low-oxygen environment prevents new scale formation on boiler surfaces. Treated makeup water and a closed-loop secondary circuit further protect the heat exchanger from corrosion.

• Compact, Modular Design
  Small water volume and modular construction allow multiple boiler units to be paralleled, matching output to demand and simplifying installation in constrained mechanical rooms.

• Fast Start-Up
  Reduced thermal inertia means the boiler reaches operating temperature quickly, ideal for intermittent loads.

Get a Vacuum Boiler Quote

4. Typical Applications

• Commercial Buildings
  Hotels, hospitals, offices, and schools use vacuum boilers for space heating and domestic hot water thanks to fast ramp-up and inherent safety.

• Residential Complexes
  District or community heating in apartments and residential estates benefits from compact footprint and modular scalability.

• Light Industrial Processes
  Food processing, textile dyeing, and chemical reactors requiring precise low-temperature steam leverage the uniform heat transfer and temperature control of vacuum boilers.

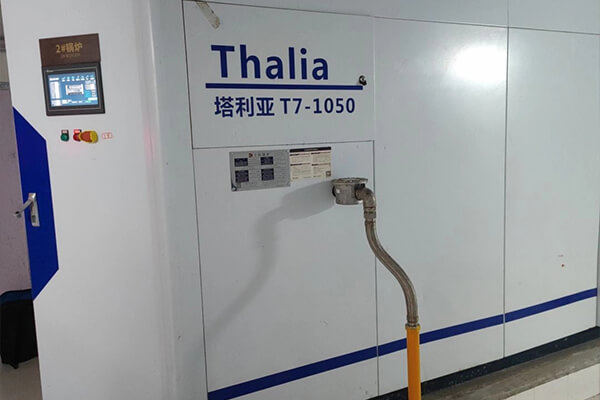

1050KW T7 vacuum hot water boiler

5. Maintenance & Water Quality

Periodic checks of the vacuum pump and detectors for non-condensable gases are essential to maintain performance. The primary water loop typically requires infrequent replacement—often every few years—due to its sealed nature. Meanwhile, the secondary (distribution) circuit should follow standard water treatment practices (softening, de-aeration, pH control) to preserve heat-exchanger life and efficiency.

Conclusion

Vacuum boilers use low‐pressure boiling and condensation to heat water safely and efficiently in a small, self-contained unit. With cooler operating temperatures, simple upkeep, and rapid startup, they’re well-suited for heating and hot-water systems in commercial buildings, homes, and light industrial facilities.
