What is Boiler Blowdown?
Boiler blowdown is the controlled removal of water from a steam boiler to:
Limit dissolved solids: As steam forms, minerals and impurities concentrate in the remaining water.
Prevent scale: Removing high‑impurity water keeps scale off heat‑transfer surfaces, preserving efficiency.
Avoid tube damage: Regular blowdown stops localized overheating and potential tube failure.
Ensure steam purity: Surface blowdown skims off impurities continuously; bottom blowdown flushes sludge periodically, preventing water‑droplet carryover.
By balancing frequency and volume, you maintain optimal boiler performance and protect downstream equipment.
Bottom Blowdown And Surface Blowdown
Every seasoned operator knows there are two distinct tactics, each for a specific threat:
- Bottom Blowdown (Sludge Buster): This is your intermittent knockout punch. Manually opening the blowdown valve sequence (always following rigorous safety procedures!) rapidly evacuates accumulated sludge and heavy sediment collected at the boiler’s lowest point. Think of it like cleaning the boiler’s sump.
- Surface Blowdown (The TDS Tamer): This is the continuous guardian. It strategically skims water, rich in dissolved solids (TDS), from just below the steam-water interface. The goal? Steady-state control of water chemistry purity. This is where intelligent automation truly shines.
Why PLCs Rule Modern Blowdown

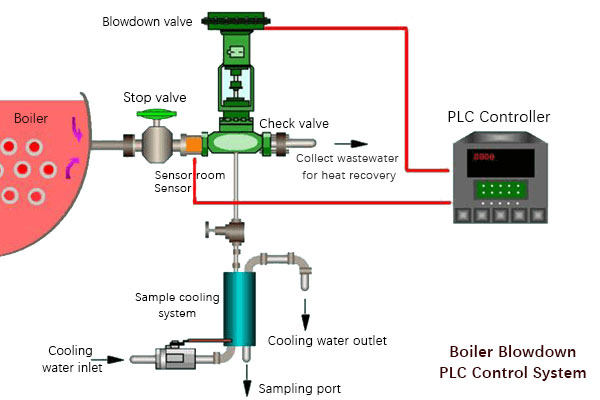

Forget rudimentary timers. Today’s robust Programmable Logic Controller (PLC) systems are industrial-strength computers built for the harsh realities of the boiler room. They continuously monitor critical parameters – think real-time conductivity (TDS), exact water level, temperature, pressure – execute your precise control strategy, and automatically command valves and actuators. This is precision engineering at work.
Anatomy of a High-Performance PLC Blowdown System:
- Eyes & Ears (Inputs): Dedicated modules interface with conductivity sensors, level switches, pressure transducers – your crucial data sources.
- The Brain (CPU): Executes rock-solid control logic (ladder logic, function blocks) you define. This logic dictates exactly when and how much to blow down based on live data.
- Muscle (Order): Drives modulating control valves (far superior to simple on/off), pump starters, alarm relays, and crucial safety interlocks.
- Operator Window (HMI): Provides clear, real-time visualization of boiler status, historical trends, alarm management, and secure setpoint adjustment.
- Plant-Wide Integration (Comms): Ethernet ports and industry protocols (Modbus TCP/IP, Ethernet/IP) link to your SCADA/DCS or IoT platforms for central oversight and data historization.
View steam boiler specifications
PLC Blowdown in Action: Precision Control Unleashed
This is where the ROI becomes tangible. A quality PLC system continuously reads conductivity/TDS levels. It instantly compares this against your optimised setpoint. Using sophisticated closed-loop PID algorithms, it precisely modulates the surface blowdown control valve’s position in real-time. This isn’t guesswork; it’s maintaining the exact TDS target – no higher (risking scale) and crucially, no lower (wasting water, heat, and chemicals). It handles load swings automatically.
Why Smart Plants Automate Blowdown
- Peak Efficiency: Pinpoint TDS control minimizes wasteful over-blowing. This translates directly to fuel savings (typically 2-5%) and reduced makeup water (15-20% less) – hitting your bottom line.
- Enhanced Safety & Reliability: PLC safety interlocks are non-negotiable. They prevent blowdown during low-water alarms or excessively high pressure, eliminating catastrophic operator errors. Reduced scaling/corrosion = fewer costly tube failures and unscheduled outages.
- Slash Labor Costs: Manual TDS checks and hourly blowdown valve cycles? Eliminated. Your skilled staff focus on proactive monitoring, not tedious valve-twisting.
- Optimized Chemistry Costs: Precise control means 20-30% lower chemical treatment consumption. Less blowdown water also cuts wastewater treatment expenses.
- Seamless Scalability: Add pH, dissolved oxygen, or silica monitors? Integrate with your plant DCS? Modern PLC architecture handles it effortlessly. Centralize oversight across distributed assets? Done.
Where Intelligence Makes the Biggest Impact:
- Large Power Plants (200+ TPH): Managing complex cascades of blowdown valves manually is inefficient and risky. PLCs automate intricate purge sequences for multiple boilers, ensuring reliability while freeing up critical operations staff. Downtime prevention is paramount here.
- Critical Process Steam (Pharma, Food & Bev, Chemical): Protecting steam purity from dissolved solids contamination is mission-critical. PLCs provide continuous, unattended TDS control, ensuring compliance and product safety – protecting your reputation and brand.
- District Energy Networks: Centrally monitor and optimize blowdown across dozens of geographically dispersed heating plants or pump stations. Ensure consistent compliance, optimize wastewater handling, and maximize overall system efficiency from a single operations center. PLCS and industrial ethernet make this a reality.
The Smart Blowdown Ethos: Minimal, Balanced, Predictive
Advanced PLC control embodies the boiler operator’s golden rule: purge minimal water, frequently and in perfect balance with the boiler’s load and chemistry. This maximizes resource efficiency – heat, water, chemicals – while safeguarding equipment longevity.
The Future is Integrated Intelligence: The next frontier isn’t just automation; it’s optimization. PLCs fused with IoT sensors and cloud analytics are enabling predictive blowdown strategies, learning your boiler’s unique operating patterns and water chemistry dynamics to further refine control setpoints. Real-time energy and cost savings dashboards provide actionable insights. This convergence sets the new standard for boiler efficiency, environmental compliance, and operational resilience. Your boiler isn’t just running; it’s learning.
PLC-Controlled Boiler Blowdown Systems
How much fuel and water does PLC blowdown control actually save?
Field-proven data consistently shows 2-5% fuel savings by minimizing heat loss from excessive blowdown. Makeup water reduction is often 15-20% or more. The exact figures depend on initial TDS levels, steam load, and make-up water quality. A detailed ROI calculation is always recommended for your specific installation.
Isn’t manual blowdown sufficient? Why automate?
Manual blowdown requires constant vigilance and meticulous timing – it’s reactive. Operators often tend to over-blow (“better safe than sorry”) to avoid scaling, wasting massive amounts of energy and water. Under-blowing risks damage. PLCs provide continuous, precise, reactive control based on live measurements, striking the perfect balance 24/7, regardless of shifts or staff availability. The reduced risk of human error in valve operation is a major safety benefit.
What about maintenance – are PLC systems complex and costly to upkeep?
Modern PLCs are engineered for industrial reliability. While they require skilled technicians (like any critical control system), their modular design simplifies troubleshooting and component replacement. Standard HMIs with intuitive interfaces make daily monitoring straightforward. The preventative maintenance enabled by the PLC (preventing scale, corrosion, tube failures) vastly outweighs its own minimal upkeep requirements. Look for UL/CSA certified systems designed for boiler room environments.
How do PLC blowdown systems enhance safety?
Critical safety interlocks are hardcoded into the PLC logic. It physically prevents blowdown activation if sensors detect low water level, excessive boiler pressure, or other hazardous conditions defined to ASME or comparable standards. This eliminates potentially catastrophic operator mistakes during manual blowdown sequences.
Can I add more sensors to my PLC blowdown system later?
Absolutely. This is a key strength of PLC architecture. Input modules can typically accommodate additional analog or discrete signals. You can easily integrate pH probes, dissolved oxygen (DO) analyzers, silica monitors, or flow transmitters down the line. The PLC program can be updated to incorporate these values into its control logic for even finer optimization.
Does automated PLC blowdown meet regulatory compliance standards?
Yes, and often exceeds them by providing consistent, documented control. Precise TDS management is fundamental to meeting boiler water chemistry standards outlined by organizations like ABMA, ASME, or local environmental agencies governing boiler operation and blowdown water discharge. The PLC’s data logging capability provides audit trails for compliance reporting.
What happens if the PLC fails? Do I lose all blowdown capability?
Robust systems incorporate failsafes. Critical blowdown functions should default to a safe state (valves closed) on PLC failure. Operators can still initiate manual blowdown via hardwired bypass panels or local valve stations following established emergency procedures. Redundant PLC configurations are an option for mission-critical applications. Discuss failover strategies with your system integrator.
From a 30-year boiler room veteran: “Automating surface blowdown with a well-configured PLC was like giving my boiler constant, expert attention. The energy and water savings paid for the system in under 18 months, and knowing it reliably blocked unsafe operation let my team sleep better. It’s the smartest upgrade for operational cost control.” This is about long-term plant intelligence and smart water management.
