What Is Fully Premixed Combustion In Industrial Boilers?

Fully premixed combustion technology is revolutionizing industrial boilers. Learn how advanced premix burners boost industrial boiler efficiency, achieve ultra-low NOx emissions, and deliver energy savings and safety in modern boiler systems.

Introduction to Fully Premixed Combustion

In a fully premixed combustion system, fuel gas is blended thoroughly with combustion air before entering the burner. This precise mixing creates a uniform, low-turbulence flame that burns very completely​. Because the air–fuel ratio is tightly controlled, the burner operates with minimal excess air and a lean flame – conditions that maximize heat output while greatly reducing hot spots. The result is remarkably efficient combustion and very low pollutant formation. In fact, fully premixed burners are designed so that “combustion [is] more complete” with “improved efficiency” and reduced harmful gases. Modern industrial boilers increasingly adopt this advanced boiler technology to meet strict emissions regulations and cut fuel costs. By automating the fuel–air mixing (often with sophisticated controls or blowers), these systems deliver higher overall efficiency and lower fuel consumption.

Diffusion vs. Fully Premixed Combustion

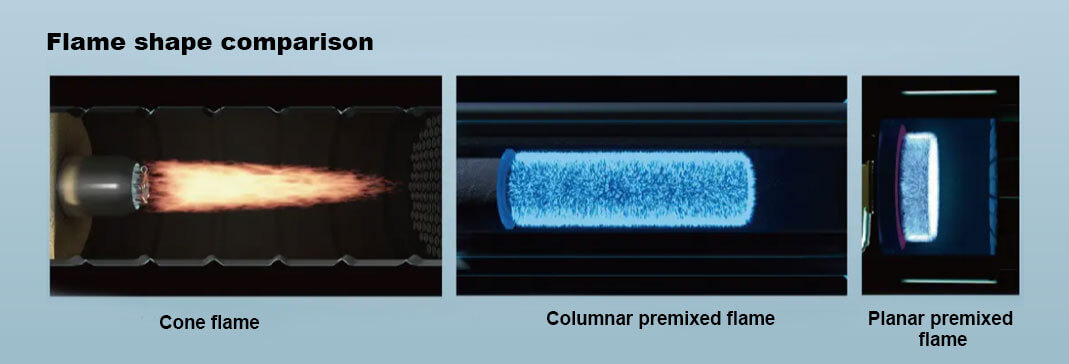

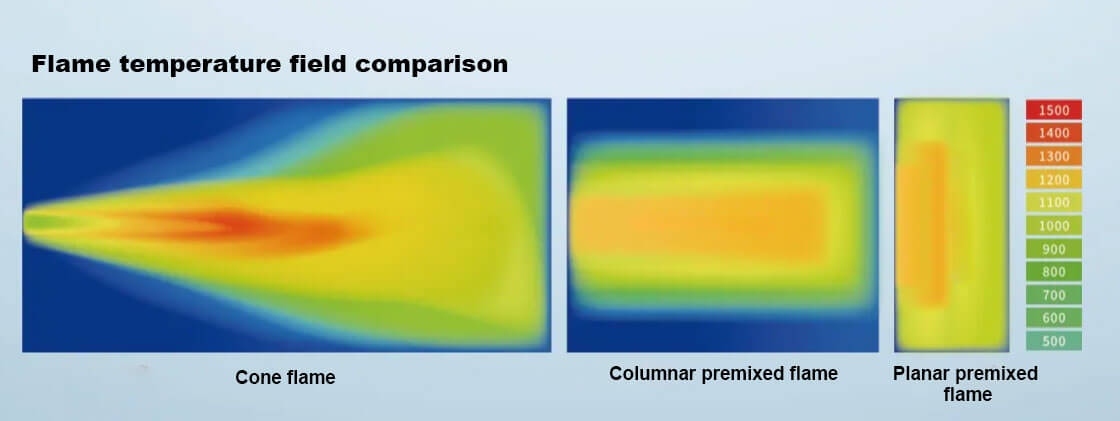

Traditional boilers often use diffusion burners, where fuel is injected into a flow of combustion air. In a diffusion flame, the fuel and air meet in the flame zone itself, creating a long, luminous flame. This method is simple and stable, but it tends to produce local hot spots and incomplete mixing. In practice, diffusion burners require extra excess air to avoid soot or CO, and they generate higher NOx because the uneven flame has regions of very high temperature. In contrast, a fully premixed burner blends fuel and air uniformly in a manifold or mesh before ignition. The flame that emerges is very short and even, with no intense peaks​. This uniform flame spreads across the burner surface, eliminating localized overheating. As burner experts explain, fully premixed combustion yields “a short flame, [and] no local high temperature zone,” which means nitrogen oxides are significantly reduced​. In practice, premixed boilers burn with very little excess air, so almost all fuel energy goes into heating the water/steam. The net effect is a boost in industrial boiler efficiency and a dramatic drop in NOx and CO emissions.

Key Advantages of Fully Premixed Combustion

Modern industrial boiler users favor fully premixed systems for a combination of performance and environmental benefits:

• Higher Efficiency & Energy Savings: Premixed flames distribute heat evenly across the entire heat exchanger, improving heat transfer. For example, a Parker metal-fiber premix burner “provides a uniform heat distribution over the entire heating surface and improved efficiencies”. In condensing boiler designs, this can translate to nearly 98% higher heating value (HHV) efficiency​. In other words, these boilers deliver more output for every unit of fuel. The precise air–fuel control means less wasted combustion energy, so fuel consumption drops. Operators report that premix burners allow smaller, more compact combustion chambers (due to the short flame​) while still extracting maximum energy. Overall, fully premixed boilers are energy-saving boilers that cut operating costs by using fuel more effectively.

• Ultra-Low NOx Emissions: By maintaining a lean, evenly distributed flame, premix burners keep peak temperatures low and NOx formation minimal. Typical premixed metal-fiber burners achieve NOx in the single-digit ppm range (below 30 mg/m³)​ – far below conventional levels. In fact, some systems are certified for the strictest emission classes. For example, a modern premix boiler can meet Class 6 NOx limits under EN 15502-1, the lowest category in Europe. The effect is “ultra-low NOx” performance: survey data show that fully premixed burners can consistently cut NOx to very low values​. Lower NOx also means less ammonia or catalyst needed downstream, simplifying compliance.

• Enhanced Safety: Complete pre-mixing of fuel and air means there are no pockets of raw fuel to ignite unpredictably. Combined with modern safety controls, fully premixed systems are inherently safe. Burners include flame sensors and automatic shutoff valves, so any flame failure immediately stops fuel flow​. Moreover, surface-mixing burners are designed to avoid flashback: even though the mesh face of a metal-fiber burner runs very hot (over 2100 °F), the opposite side remains cool (~248 °F) below fuel ignition point​. This effectively prevents flame carryback. In short, fully premixed designs promote stable combustion and come with advanced interlocks to prevent accidents. Operators see that “advanced safety systems” (flame detectors, pressure monitors, etc.) keep the boiler running safely, even under lean conditions​.

• Flexible Operation (Wide Turndown): Premixed boilers easily adjust their output from high to very low firing rates. Because the fuel–air ratio is digitally controlled (often with a VFD-driven blower), the flame can be scaled without losing stability. Many fully premixed systems have rated turndown as broad as 5:1 or 20:1 for a single unit, and cascade arrangements can effectively reach 50:1 overall​. For example, a modular premix burner might modulate from 20% up to 100% power​. This wide modulation ratio means the boiler spends more time running at part load (when heat demand is lower), improving seasonal efficiency and saving fuel. It also avoids frequent on/off cycling, which reduces wear. In practice, facility managers find that these boilers respond precisely to load changes, smoothing out energy use.

Advanced Burner Technology in Fully Premixed Boilers

Fully premixed boilers incorporate several cutting-edge design features:

• Modular Premix Burners: Many industrial systems use multiple small premix burner modules rather than one giant burner. This modular approach offers redundancy and scalability. For instance, a cascade system can combine up to 10 burner modules in parallel. Each module is a separate premixed burner, and the control system can light or modulate each one independently. The benefit is huge flexibility: staging multiple modules achieves a massive overall turndown (up to 50:1​) while keeping each burner in its optimal range. Maintenance is easier too, since a single module can be serviced without shutting down the entire plant.

• Precision Air–Fuel Ratio Control: State-of-the-art premix boilers use smart controls to maintain an exact fuel/air mixture at all times​. Typically a VFD (variable-frequency drive) blower or precision valve meter the flows. By constantly monitoring the actual gas flow and air intake, the system calculates and corrects the ratio in real time. This precise control is critical for lean combustion: it keeps the flame stable even at low loads, and it prevents fuel-rich conditions that could produce CO or soot. Burner catalogs note that “premixing fuel and air assures complete combustion, with minimal generation of CO and unburned hydrocarbons”. In practice, the boiler’s PLC or controller uses sensors (flame detectors, oxygen probes, etc.) to fine-tune the mix. The result is consistently efficient burning across the load range, with less pilot flame time and no need for manual adjustments.

• Wide Modulation and Combustion Range: Apart from multiple modules, a single premix burner can often throttle down to very low firing rates. Some designs advertise turndown of 1:5 or more within one module. For example, Riello’s premix burners are engineered for “high modulating turndown ratios” while keeping emissions low​. This means each burner can idle quietly at 10–20% output when demand is low. The combination of hardware and control algorithms ensures smooth load changes. Overall, the boiler meets heat demand exactly, without wasteful overshooting.

• Emission-Control Features: Fully premixed burners are often paired with additional emissions control. Many incorporate flue-gas recirculation (FGR) or premixed flame stabilization to knock down NOx further. For example, the Alzeta CSB surface burner is “surface-stabilized” – it uses a special ceramic plate to hold a wide, porous flame front. This design and the lean mixture keep flame temperatures low, achieving ultra-low NOx performance​. In practice, the flame remains diffuse and even as back-pressure changes, so the boiler consistently meets strict limits (some systems guarantee <30 ppm NOx at all loads). Manufacturers highlight that these burners achieve “the simplest ultra-low NOx solution” through premixing alone​.

Overall, the combination of modular design, digital control, and premix burner technology makes these advanced boilers among the cleanest and most efficient on the market. They represent state-of-the-art industrial boiler technology. Importantly, all these innovations still comply with safety standards: national labs routinely list metal-fiber premix units for quality and safety under tough conditions​.

Industry Trends and Adoption

The shift toward fully premixed burners is not just theory – it’s a growing industry trend. Boiler manufacturers and plant engineers worldwide are specifying low-NOx premix systems to meet tighter regulations and sustainability goals. For example, a recent industry publication noted that “advanced combustion technologies set a new standard for clean energy,” highlighting low-NOx burners and digital controls as key enablers​. Burner suppliers explicitly call premix combustion the “technological frontier” for efficient, low-emission boilers​.

In practice, many modern projects now feature energy-saving boilers with premix burners. Firms report that retrofitting diffusion boilers with premix units is an effective path to compliance and fuel savings. Meanwhile, new installations often default to premixed designs: the demand for an “ultra-low NOx boiler” has become common in specifications. At trade expos, you’ll see hydrogen-capable premix burners and AI-enhanced combustion controls as emerging solutions – further evidence that premixed firing is central to the future of boilers​.

For decision-makers, the takeaway is clear: selecting an advanced premix boiler can future-proof their facility. It means achieving industrial boiler efficiency targets and environmental compliance simultaneously. It also positions a plant to adapt to new fuels (like hydrogen) with minimal changes, since premix systems can often run on gas blends with simple tuning.

Conclusion

Fully premixed combustion is rapidly becoming the standard for clean, efficient boiler operation. By blending gas and air before ignition, these systems achieve extremely high combustion efficiency and ultra-low NOx emissions​. Modern premix boilers utilize modular burner arrays and precise controls to cover wide load ranges while maintaining stable, lean flames. The result is a boiler that saves fuel, meets strict emission limits, and runs safely with minimal waste. In short, fully premixed boilers offer the best of all worlds: superior industrial boiler efficiency, compliance with environmental regulations, and significant energy savings. As industry experts observe, advanced premix combustion gives manufacturers “the tools to achieve sustainability goals without compromising performance”. For any plant evaluating energy-saving boilers today, a fully premixed design should be at the top of the list.
