Why is steam boiler efficiency over 100%? — What Does LHV Mean?

Why can steam boiler efficiency sometimes be reported as greater than 100%?

When you see steam boiler efficiency numbers above 100% the root cause is almost always a mismatch of bases or measurement error. If a test reports useful steam energy divided by a smaller denominator (LHV), the percentage increases and can exceed 100% relative to that basis. Other contributors include unreported supplemental heat (waste-heat recovery counted twice), instrumentation errors, or inconsistent scope (boiler-only vs system-level). The simple protective rule: always record the basis (HHV or LHV), the test load, and whether heat recovery is included when reporting steam boiler efficiency.

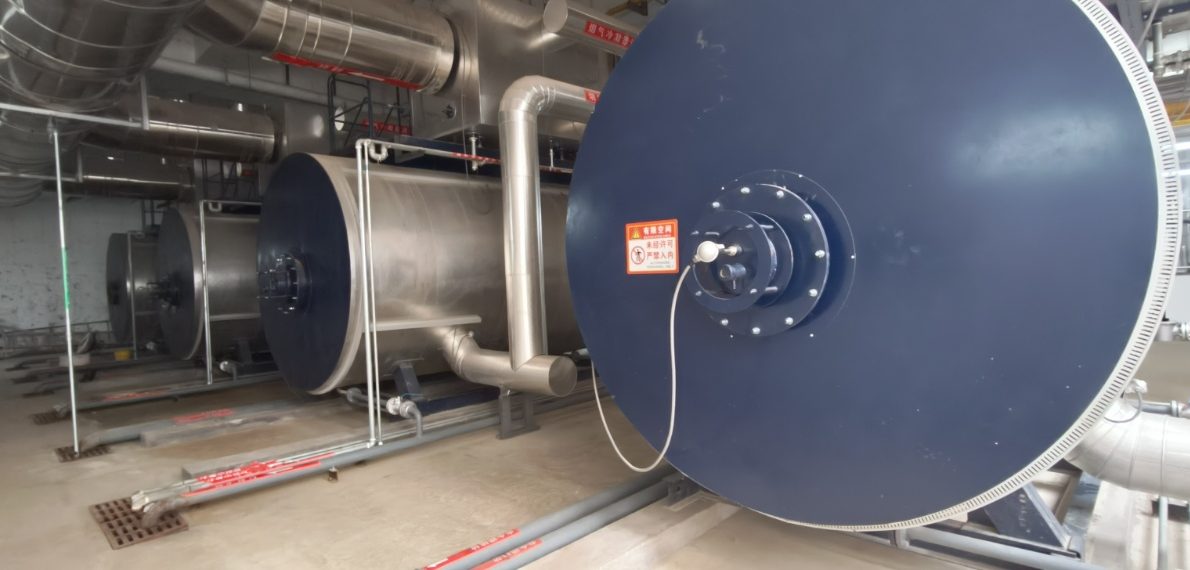

wns steam boiler

What are LHV and HHV？

LHV (Lower Heating Value) and HHV (Higher Heating Value) are two ways of expressing a fuel’s energy content. HHV includes all the heat released during combustion, including the latent heat in the water vapor formed when hydrogen in the fuel burns. LHV excludes this latent heat, assuming the water remains as vapor and its energy is not recovered. Because LHV uses a smaller denominator, efficiency calculations on this basis always look numerically higher than those on the HHV basis, even though the actual boiler performance is identical.

What should real-world steam boiler efficiency be when LHV is used?

If you know a boiler’s efficiency on an LHV basis, how can you estimate its HHV efficiency? A simple approach is to multiply the LHV-based efficiency by the fuel’s LHV/HHV ratio, which typically ranges from 0.88 to 0.92 for natural gas and 0.94–0.96 for fuel oil. For example, a boiler rated at 107% efficiency on an LHV basis would correspond to roughly 96% HHV efficiency for natural gas (107% × 0.90 ≈ 96%). This method provides a practical way to interpret high LHV-based numbers and compare them to more conventional HHV-based efficiency figures.

What level of steam boiler efficiency should be considered high-efficiency?

High-efficiency steam boiler performance is application dependent, but sustained results above ~90% on an HHV basis are widely regarded as excellent for industrial boilers. If you report on an LHV basis, correspondingly high values will be numerically larger. A practical approach is to pick one basis (many auditors prefer LHV/NCV for consistency with process heat evaluations), publish the basis, and set KPI thresholds accordingly so comparisons are apples-to-apples.

Which common boilers deliver high steam boiler efficiency when LHV is considered?

Common high-performance choices include:

• Water-tube steam boilers with economizers and oxygen trim

• Packaged firetube boilers designed for low flue-gas loss and good turn-down control

• Waste-heat recovery steam generators (HRSGs) and CHP systems that reclaim exhaust heat
  When evaluating options, require vendors to provide both HHV and LHV-basis efficiency curves across load, and verify test data with independent instrumented measurements.

What is the single most effective way to raise steam boiler efficiency that accounts for LHV?

The single most cost-effective upgrade in many installations is adding or improving heat recovery (an economizer or feed-water preheater) because it reduces flue-gas sensible losses. This reduces the energy you must supply per unit of steam and raises measured steam boiler efficiency on either basis — but the numerical gain will look larger if reported on LHV. Complement heat recovery with combustion optimization (oxygen trim), condensate return, insulation, and blowdown control for the best practical result.

Contact Us

How should operators measure and report steam boiler efficiency with LHV in mind?

Best practice:

1. Choose a basis (LHV or HHV) and state it clearly in every report.

2. Document test conditions: fuel analysis, load, feed/return temperatures, ambient, and condensate return rate.

3. Use instrumented, repeatable tests and record both fuel input and all useful heat outputs.

4. Where possible, publish both HHV and LHV results so readers can compare. This removes ambiguity and prevents misleading claims about steam boiler efficiency.

Conclusion: what is the correct way to interpret steam boiler efficiency numbers?

Steam boiler efficiency is a vital KPI — but it is only meaningful when the heating-value basis (LHV vs HHV), test scope, and operating conditions are explicit. LHV is commonly used in modern energy audits (often called NCV) and will yield numerically higher efficiencies than HHV. To avoid confusion, report both bases or explicitly state the chosen basis, and prefer instrumented, system-level metrics that include condensate recovery and heat-recovery components.

FAQ: common questions about steam boiler efficiency and LHV

What is LHV and how does it affect steam boiler efficiency?

LHV (Lower Heating Value) — aka NCV — excludes the latent heat of vaporized combustion water. Using LHV as the denominator increases the numerical steam boiler efficiency versus using HHV (GCV). Always state which you used.

Why do some audits prefer LHV (NCV)?

Auditors often prefer LHV because it reflects the energy actually available for process heating when flue-gas condensation is not recovered. LHV aligns the metric with real process heat availability.

Can steam boiler efficiency exceed 100% legitimately?

Not if both numerator and denominator use the same physical basis. Apparent >100% values arise from mixed bases, measurement errors, or omitted energy accounting. If you see >100%, check LHV vs HHV and measurement assumptions.

Should I require vendors to quote LHV or HHV numbers?

Require both. That transparency lets you compare and convert results reliably.
