Comprehensive Overview of Industrial Boiler Automatic Water Level Control Systems

The operational integrity, efficiency, and safety of large industrial boilers depend on precise drum water level management. Automated closed-loop control systems maintain this level within strict limits, compensating for rapid steam demand fluctuations.

These systems integrate mechanical components and electronic instrumentation, orchestrated by a central controller. This creates a responsive and reliable network essential for modern industrial operations.

Contact Us

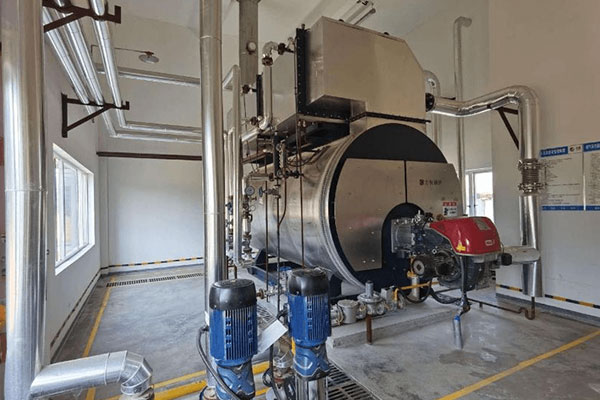

System Architecture for Industrial Boiler Automatic Water Systems

A typical system begins with a feedwater source blending condensate return and treated makeup water. This water first enters a deaerator or feedtank for essential gas removal.

The deaerator heats water with steam to remove oxygen and carbon dioxide. This process prevents corrosive damage to boiler internals and piping systems.

Treated water is then drawn by redundant feedwater pumps for operational continuity. The water is delivered under pressure to the boiler drum through controlled pathways.

Flow is precisely regulated by control valves based on level and flow inputs. A central PLC or DCS executes complex algorithms for real-time system modulation.

Industrial Boiler Automatic Water – Control Valve

Advanced Control Strategies for Automatic Boiler Water Regulation

Control strategies have evolved to meet demands for greater stability and efficiency in water regulation.

Single-Element Control
This basic strategy uses only drum level transmitter signals to modulate valves. While cost-effective, it’s reactive rather than predictive.

During steam demand increases, drum pressure drops cause water “swell.” This creates false high-level readings that reduce feedwater flow incorrectly. The system often experiences oscillations and potential safety trips.

Two-Element Control (Feedforward Control)
This approach incorporates steam flow measurements alongside level data. It uses drum level as the primary variable with steam flow as a feedforward signal.

The controller adjusts valves to match water inflow with steam outflow. This mass-balance approach minimizes level deviations during load changes. However, supply-side disturbances like pump fluctuations remain challenging.

Three-Element Control (Cascade Control)
The industry standard for significant steam capacity boilers offers robust performance. It integrates drum level, steam flow, and feedwater flow measurements.

A master level controller compares actual levels with setpoints. Its output sets desired feedwater flow rates for secondary flow controllers. This eliminates discrepancies between desired and actual flow conditions.

Industrial Boiler Automatic Water – Deaerator

Core Components of an Boiler Automatic Water Control System

Feedwater Pumps
Multi-stage centrifugal pumps driven by electric motors or steam turbines form the heart of the system. Variable Frequency Drives (VFDs) enable precise pump motor speed control.

This approach matches flow demand accurately while reducing energy consumption. It also minimizes wear on pump components and associated piping.

Feedwater Control Valves
High-precision sliding-stem globe valves serve as final control elements. Fast-acting pneumatic or electric actuators respond to minute signal changes.

These valves maintain tight level control across operational ranges. Proper sizing ensures authority at both minimum and maximum flow conditions.

Level Detection Systems
Differential Pressure (DP) Transmitters provide primary level measurement. Temperature compensation ensures accuracy across operational ranges.

Conductivity Probes offer discrete level points for alarm functions. Magnetic Level Gauges provide vital local visual indications for operator reference.

Feedtank and Deaerator
These vessels serve as buffer storage and corrosion prevention units. Steam atmosphere spraying ensures effective gas removal.

Adequate residence time allows dissolved gases to release properly. Venting systems maintain efficiency above 95% for operational safety.

Industrial Boiler Automatic Water – Level Detection Systems

Integration of Water Treatment with Automatic Water Control

Water level control requires integrated quality management. Makeup water undergoes softening, demineralization, or reverse osmosis.

These processes remove scale-forming impurities and corrosive elements. Continuous conductivity monitoring guides automatic blowdown systems.

Controlled purging maintains dissolved solids within safe limits. Inline chemical dosing systems adjust oxygen and pH levels automatically.

Holistic integration protects boiler internals from damage. It maintains heat transfer efficiency and ensures steam quality.

Industrial Boiler Automatic Water – Feedwater Pumps

Safety and Maintenance of Automatic Water Supply Systems

Robust safety interlocks program critical response protocols. Systems trip automatically during dangerous level conditions.

Regular maintenance ensures long-term reliability. Periodic transmitter calibration maintains measurement accuracy.

Control valve stroking tests verify full operational ranges. Pump performance checks prevent unexpected downtime.

Common issues include valve stem sticking and sensor fouling. Deaerator vent blockages require systematic troubleshooting approaches.

WNS Steam Boiler

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of a three-element control system over a two-element system?
A1: The primary advantage is its ability to compensate for disturbances on both the demand side (steam flow changes) and the supply side (feedwater pressure or valve issues). The two-element system only effectively handles demand-side changes, while the three-element system uses a dedicated feedwater flow controller to maintain the exact water mass balance, resulting in superior stability.

Q2: How does a VFD improve the efficiency of an automatic boiler feedwater system?
A2: A Variable Frequency Drive (VFD) controls the speed of the feedwater pump motor. Instead of running at full speed and throttling the flow with a valve (which wastes energy), the VFD reduces the pump speed to match the required flow. This results in significant energy savings, reduced electrical demand, and less wear on the pump and valve.

Q3: Why is water treatment considered a critical part of automatic boiler water control?
A3: While the control system manages water quantity (level), water treatment manages quality. Poor water quality leads to scale formation on heat-transfer surfaces (reducing efficiency and causing overheating), corrosion of metal components, and steam carryover. These issues can damage equipment and undermine the effectiveness of the automatic level control system itself.

Q4: What is the most common cause of false level readings in a boiler drum?
A4: For DP transmitters, the most common cause is an issue with the reference leg (“condensate pot”). If this leg loses its water seal or becomes filled with steam, it will provide an incorrect pressure reference, leading to a false level reading. Proper maintenance and checking of the impulse lines are essential.

Q5: Can an older boiler with manual control be upgraded to an automatic system?
A5: Yes, retrofitting is very common. It typically involves installing modern level and flow sensors, a feedwater control valve with an actuator, and a PLC-based controller. Upgrading to an automatic system enhances safety, improves efficiency, and reduces operator workload.

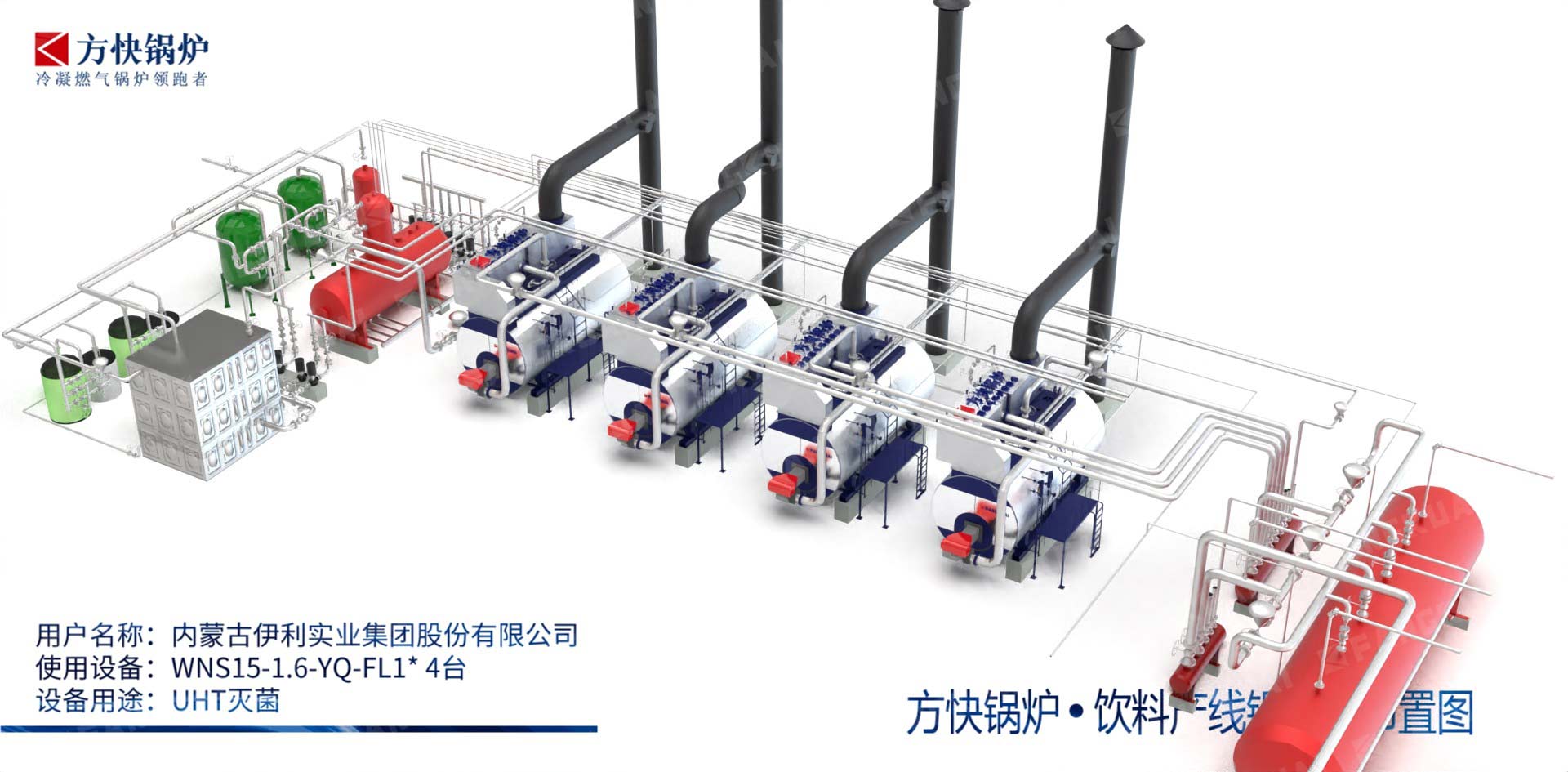

Case in Point: Fangkuang Boiler Systems

Fangkuang boiler systems exemplify this integrated approach by utilizing advanced PLC-based control systems. These systems precisely coordinate the automatic water supply device with steam demand and water quality parameters, effectively preventing abnormal water level conditions and ensuring safe, efficient, and continuous operation.
