What Type of Boiler Is Used in The Paper Industry?

The paper industry is one of the most energy-intensive sectors in the world, relying heavily on steam for its entire production process. From pulping wood chips to drying massive sheets of paper, steam is the backbone of every stage. And at the heart of steam generation lies the boiler system.

But what type of boiler is used in the paper industry? In this article, we will answer this question while exploring boiler efficiency, environmental impact, cost considerations, and future trends shaping paper manufacturing.

What Is the Role of Steam Boilers in the Paper Industry?

Paper production involves several stages where steam is essential:

1. Pulping: High-temperature steam is used to separate wood fibers and break down raw materials into pulp.

2. Bleaching and Cooking: Controlled steam supply maintains precise temperatures for chemical processes.

3. Drying: After pulp sheets are formed, steam-heated cylinders dry them into finished paper products.

Without a reliable steam boiler for paper industry operations, production efficiency drops, costs rise, and product quality suffers.

What Are the Main Steam Boiler Types Used in the Paper Industry?

Paper mills use different types of boilers depending on their steam requirements, available fuels, and budget considerations.

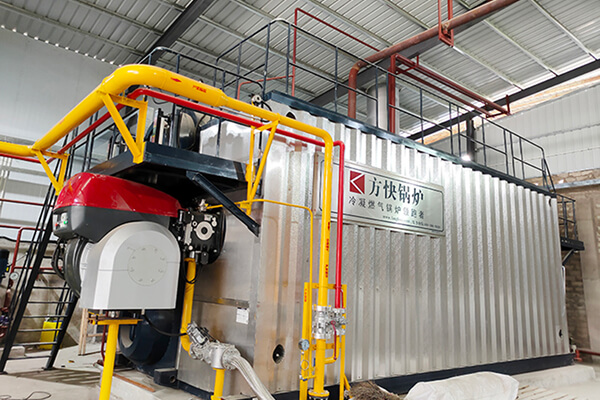

1. Water-Tube Steam Boilers

• How They Work: Water flows inside tubes while hot combustion gases heat them externally.

• Advantages:

  • Suitable for high-pressure, high-temperature applications

  • High efficiency with large steam output

  • Excellent safety record for large operations

• Application: Widely used in large paper mills with continuous 24/7 production.

2. Fire-Tube Steam Boilers

• How They Work: Hot gases flow through tubes surrounded by water.

• Advantages:

  • Compact size, lower initial cost

  • Easy operation and maintenance

• Application: Smaller paper production facilities with moderate steam demands.

3. Biomass-Fired Steam Boilers

• How They Work: Use waste materials like wood chips, bark, or black liquor as fuel.

• Advantages:

  • Reduce fuel costs by using renewable energy

  • Lower greenhouse gas emissions

• Application: Mills with access to biomass waste adopt these for cost savings and sustainability.

4. Gas-Fired Steam Boilers

• How They Work: Burn natural gas or LPG for clean, efficient combustion.

• Advantages:

  • High thermal efficiency with low emissions

  • Fast startup and precise steam temperature control

• Application: Paper mills in regions with strict environmental regulations or cheap natural gas supply.

Which Steam Boiler Is Mostly Used in the Paper Industry?

The water-tube boiler remains the dominant choice for large-scale paper mills. Its ability to produce high-pressure steam efficiently and safely meets the continuous demand of industrial paper production lines.

However, as environmental regulations tighten, many mills also invest in biomass-fired boilers to cut carbon emissions and save on fuel costs. In fact, hybrid systems combining water-tube technology with biomass combustion are becoming increasingly common.

What Factors Influence Boiler Selection in Paper Mills?

Choosing the right steam boiler for paper industry operations involves balancing cost, efficiency, and sustainability. Key factors include:

1. Steam Demand & Pressure:

   • Large mills need high-capacity water-tube boilers.

   • Smaller plants can use fire-tube or gas-fired units.

2. Fuel Availability & Cost:

   • Regions with natural gas networks prefer gas-fired boilers.

   • Areas with wood waste adopt biomass-fired boilers.

3. Energy Efficiency Goals:

   • Advanced boilers with economizers and condensers recover waste heat, cutting fuel bills.

4. Environmental Regulations:

   • Low-NOx burners and hybrid biomass systems help mills comply with emission limits.

5. Automation & Maintenance:

   • Modern boilers with PLC controls offer remote monitoring, predictive maintenance, and automatic load adjustments.

Contact Us

How Do Modern Boilers Improve Energy Efficiency and Environmental Performance?

Modern paper mills focus on reducing energy costs and carbon footprints. Some technologies helping achieve these goals include:

• Condensing Economizers: Recover heat from flue gases for preheating boiler feedwater.

• Variable Frequency Drives (VFDs): Adjust fan and pump speeds for energy savings.

• Low-NOx Burners: Minimize nitrogen oxide emissions.

• Hybrid Fuel Systems: Combine natural gas with biomass for cleaner combustion.

These advancements help mills cut fuel consumption by up to 20–30%, directly lowering operational costs.

What Are Some Real-World Examples of Boiler Upgrades in Paper Mills?

A paper mill in Southeast Asia recently installed a 40 t/h biomass-fired water-tube boiler using bark and wood chips as fuel. The result:

• 30% lower fuel costs compared to coal

• 50% reduction in CO₂ emissions

• High-pressure steam supply for both pulping and drying sections

This example shows how boiler modernization boosts both profitability and sustainability.

What Are the Future Trends for Steam Boilers in the Paper Industry?

The next generation of steam boiler for paper industry operations will focus on:

• Digital Twin Technology: Simulating boiler performance for predictive maintenance.

• Hydrogen-Fueled Boilers: Zero-emission energy for greener paper production.

• Waste Heat Recovery Systems: Capturing exhaust heat for power generation.

• AI-Based Efficiency Optimization: Automated combustion control for maximum fuel savings.

As the industry moves toward carbon neutrality, smart and hybrid boiler systems will dominate future investments.

FAQ: Steam Boilers in the Paper Industry

Q1: What is the main purpose of a boiler in the paper industry?
A boiler provides steam for pulping, drying, chemical processing, and even electricity generation in some mills.

Q2: Why are water-tube steam boilers preferred in large paper mills?
They handle high-pressure, high-temperature steam demands efficiently and safely, making them ideal for large-scale production.

Q3: Are biomass boilers cost-effective for paper production?
Yes. Mills with wood waste access can save significantly on fuel costs while reducing carbon emissions.

Q4: How do modern boilers reduce environmental impact?
By using clean fuels, low-NOx burners, and waste heat recovery systems to minimize emissions and energy waste.

Q5: Can one steam boiler type meet all paper mill needs?
Not always. Some mills combine biomass, gas-fired, and waste heat boilers for maximum efficiency and flexibility.

Q6: What role will hydrogen play in future boiler systems?
Hydrogen-fueled boilers offer zero-carbon energy, likely becoming popular as green hydrogen production costs fall.
