Vacuum Hot Water Boiler Vs. Pressurized Hot Water Boiler

Below is a detailed comparison of vacuum hot water boilers and pressurized hot water boilers, highlighting their key characteristics, operating principles, efficiencies, safety considerations, applications, and cost implications.

A vacuum hot water boiler operates under sub‑atmospheric pressure, allowing phase‑change heat transfer at lower temperatures with minimal risk of explosion, high thermal efficiency, compact size, and very low maintenance requirements. In contrast, a pressurized hot water boiler is a closed, positively‑pressurized system (typically 12–25 psi for low‑temperature applications or up to 160 psig for high‑temperature loops) that heats water by sensible heat, maintains system pressure via expansion tanks and relief valves, and requires regular inspection, water treatment, and safety‑valve testing.

Vacuum Hot Water Boiler T7

Definitions

Vacuum Hot Water Boiler

• Operates below atmospheric pressure (“vacuum”), typically by sealing the heat‑exchange chamber and evacuating air to create negative pressure.

• Water boils at reduced temperatures (often 50–90 °C), producing low‑pressure steam that condenses on a secondary circuit to transfer latent heat very efficiently.

Pressurized Hot Water Boiler

• A sealed vessel in which water is heated above ambient pressure (commonly 12–25 psi for LTHW systems, or up to 150–160 psig for MTHW/HTHW systems).

• Transfers heat by circulating hot water (not steam) through a piping network, keeping water entirely in the liquid phase even at temperatures up to 121 °C or higher.

Condensing Pressurized Hot Water Boilers i7

Operating Principles

Vacuum Boiler Operation

1. Vacuum Creation: A vacuum pump evacuates all air, establishing sub‑atmospheric pressure inside the chamber.

2. Latent‑Heat Transfer: Water flashes to steam at low temperature; this steam flows to the heat‑release surface where it condenses, releasing its latent heat almost isothermally.

3. Condensate Recirculation: The condensate returns automatically under vacuum to the boiler, minimizing scale and maintaining efficiency without deaeration.

Pressurized Boiler Operation

1. Closed‑Loop Pressurization: An expansion tank, pressure relief valve, and fill‑vale maintain a positive, stable pressure (e.g., ~12 psi for LTHW).

2. Sensible‑Heat Transfer: Water is heated to a preset temperature below its boiling point; a circulation pump forces it through radiators or coils, where it gives up sensible heat.

3. Water Treatment & Control: Deaerators or chemical feeds remove dissolved oxygen; safety valves and gauges comply with ASME or local codes.

Energy Efficiency

• Vacuum Boilers leverage the high latent heat of vaporization and almost zero temperature differential across the heat‑exchange surface, often achieving thermal efficiencies >98% with rapid response and low standby losses.

• Pressurized Boilers can operate at elevated temperatures for better distribution but incur higher radiation and conduction losses from the vessel and piping; LTHW systems typically reach 85–95% efficiency depending on insulation and modulation.

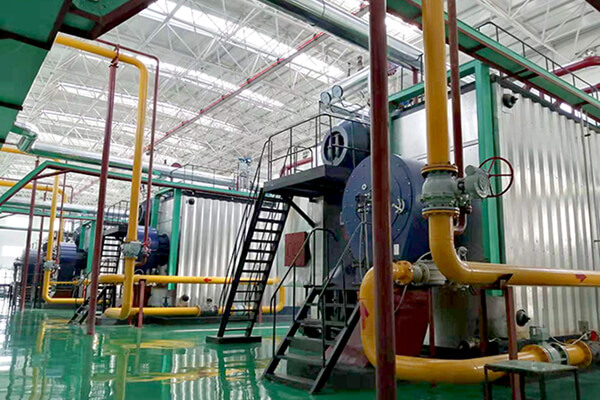

Large Heating Company Water Tube Boiler Case (using modular boiler system)

Safety & Maintenance

Vacuum Boilers

• Intrinsic Safety: Any breach draws air in, quenching steam rather than releasing high‑pressure fluid; explosion risk is virtually nil.

• Low Maintenance: No scaling or corrosion due to de‑oxygenated water and closed vacuum; only periodic checks of vacuum pumps and controls are required.

Pressurized Boilers

• Regulatory Requirements: Subject to ASME Section IV (LTHW) or Section I (MTHW/HTHW) codes; safety relief valves, gauges, and periodic inspections are mandatory.

• Water Quality Control: Continuous deaeration or chemical treatment to prevent corrosion; annual blowdown and valve testing necessary.

Applications

Cost Considerations

• Capital Investment: Vacuum boilers cost more per kW due to vacuum pumps and engineered exchangers but save on structural steel, relief‑valve infrastructure, and insulation.

• Operating Costs: Vacuum systems use less fuel and eliminate water treatment expenses; pressurized systems incur ongoing chemical, inspection, and maintenance costs.

Conclusion

Vacuum hot water boilers excel in low‑temperature, high‑efficiency, and intrinsically safe applications, with minimal maintenance and compact installation. Pressurized boilers remain the standard for higher‑temperature loops, larger capacity, and widely established code compliance, albeit with greater ancillary costs and regulatory oversight. The optimal choice depends on required temperatures, safety priorities, space constraints, and total lifecycle costs.
