Fangkuai Boiler is a leading domestic A-class boiler manufacturer with two large factories covering a total area of 140,000 square meters. Take an online factory tour now.
1. Inside the Industrial Boiler Production Hub

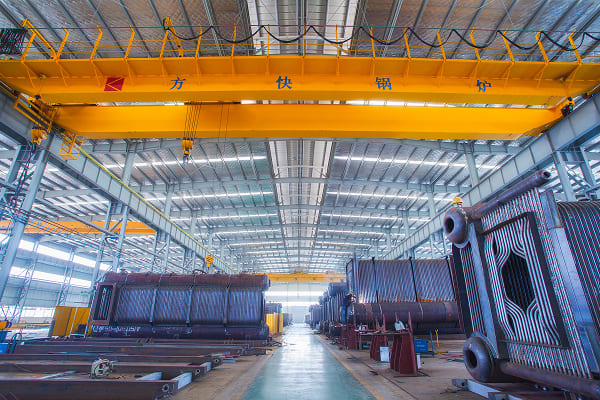

Industrial boiler production base
The core of any boiler maker lies in its manufacturing capabilities. Fangkuai’s workshops are a testament to industrial scale and precision engineering.
- Material Handling & Preparation: Sophisticated boiler manufacturing begins here. Plasma cutters, laser cutters, and flame cutting machines handle steel plate and tube cutting with extreme accuracy. Dedicated pre-treatment lines then ensure steel surfaces are cleaned, straightened, and primed to perfection before forming.
- Shaping & Forming: Heavy-duty equipment meets Class A boiler requirements. Plate rolls capable of bending 20-46 mm cold steel form boiler drums and furnace shells. Pipe bending machines shape complex waterwall and superheater elements. Additional bevelling machines, presses, and dies precisely prepare components for welding.
- Welding & Heat Treatment: Quality industrial boiler construction relies on advanced joining technology. Automated systems dominate: submerged arc welders handle long seams, dedicated TIG/MIG cells tackle precision parts, and robotic welders ensure consistent quality on complex assemblies like headers. Critical pre-heating and post-weld heat treatment (PWHT) in large furnaces guarantee material integrity and manage stresses per stringent codes.
- Assembly & Quality Assurance: Massive overhead cranes (10+ ton capacity) position major assemblies like drums onto robust alignment jigs. Then, rigorous inspection takes over. RT (radiographic testing), UT (ultrasonic testing), and stringent hydrostatic pressure tests rigorously verify every joint and pressure part. On-site spectrometers provide rapid material certification.
- Dedicated Production Lines: High-volume boiler manufacturing requires specialization. Fangkuai operates integrated lines for key components:
- Waterwall Panel Lines: Incorporating automated welding systems for consistent, high-quality membrane walls.
- Serpentine Tube Lines: Combining bending, precise TIG welding stations, and inline NDT for efficient superheater/economizer bundle fabrication.
- Header Fabrication Stations: Equipped for accurate drilling and automated welding of end caps.

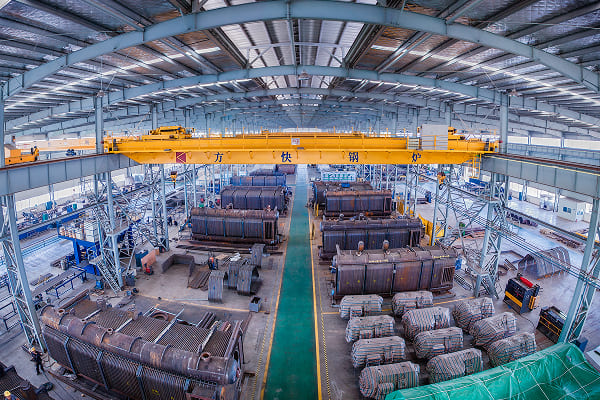

Industrial water tube boiler production area
| Equipment Category | Specific Equipment | Primary Function | Application Phase |
|---|---|---|---|
| Raw Material Processing | Plasma/Laser Cutting Machines, Plate Prep Lines | Precise cutting, surface treatment (rust removal, leveling) | Material Preparation |
| Forming & Machining | Plate Rolling Machines, Tube Benders, Edge Bevellers | Bending (cylinders, pipes), stamping (heads/tubesheets), edge preparation | Component Forming |
| Welding & Heat Treatment | Submerged Arc Welders, Welding Robots, Heat Treatment Furnaces | Automated welding, stress relieving, material property improvement | Welding & Post-Weld Treatment |
| Assembly & Inspection | Overhead Cranes (≥10t), RT/UT Equipment, Hydrostatic Test Units | Component positioning, weld defect detection, pressure integrity testing | Assembly & Quality Control |
| Dedicated Production Lines | Membrane Wall Lines, Serpentine Tube Lines, Header Machining Stations | High-efficiency production of core boiler assemblies | Critical Component Manufacturing |
Laboratory lobby(Make an appointment for a site visit)
2. Pioneering Industrial Boiler Research & Testing
Core Testing Capabilities

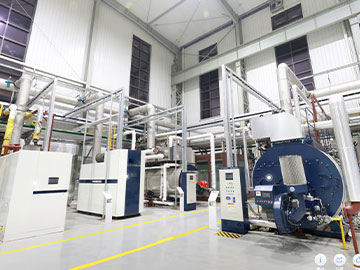

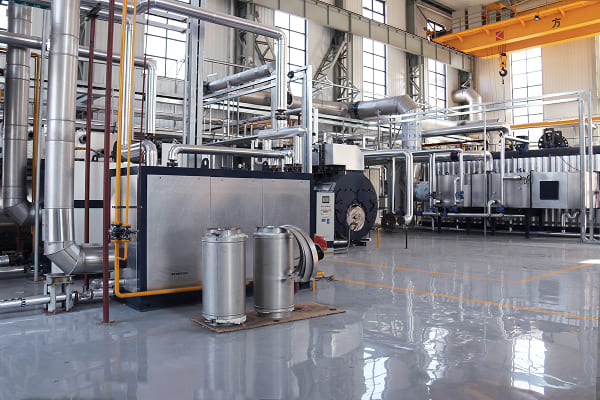

A full-condition laboratory validates boiler performance across dynamic operating scenarios. It replicates real-world conditions via multi-loop steam/water simulation systems featuring:
- Multi-fuel burners (gas/biomass/oil) with transient load control (≥5%/min ramp rates).
- Adaptive thermal circuits that mimic cold starts, load changes, and trip events, covering flows (0.5–200 m³/h) and pressures (≤32 MPa).
- High-accuracy instrumentation (300+ sensors, ±0.1% flowmeters, calibrated per ASME PTC 4).
Advanced Analysis & Certification
This lab specializes in failure prediction and performance optimization through:
- Transient diagnostics: High-speed data acquisition (≥100 Hz) detects combustion oscillations/hydrodynamic instabilities.
- Digital twin integration: Combines test data with CFD/FEA models for efficiency decay/NOx prediction.
- Environmental simulation: Climate chambers (-40°C to +50°C) and flue gas recyclers (O₂ control ±0.2%) test extreme conditions.
- Certification testing: TÜV/ASME-accredited for steam purity (Na⁺/SiO₂ monitoring) and burner compliance (EN 676).

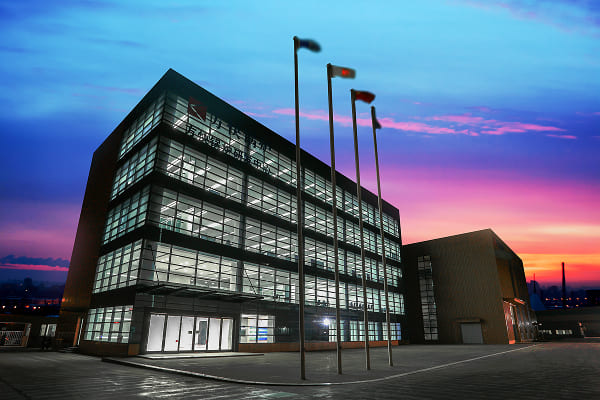

Exterior view of industrial boiler R&D laboratory
Key Test Functions:
| Test Type | Simulated Condition |
|---|---|
| Load Transients | 30%→100% step change (≤3 min) |
| Safety Thresholds | Rapid depressurization (1 MPa/s) |
| Deep Cycling | 15% load operation (≥8 hrs) |
Purpose: Guarantees boiler safety/efficiency in >98% operational scenarios for new designs & retrofits.
3. Collaborative Support Spaces
The modern administration building supports operations. The ground floor hosts a technical showroom, a space for boiler manufacturers to engage clients and demonstrate technological advances. Floors above accommodate sales, engineering, and dedicated customer service teams – crucial for supporting the complex lifecycle of industrial boilers.
Office (one of them)
4. Investing in People
Recognizing that skilled personnel are fundamental to boiler manufacturing excellence, Fangkuai provides comprehensive on-site amenities, including a staff cafeteria and living accommodations, fostering a dedicated workforce.
FangKuai Boiler: Synergy of Innovation, Precision, and Performance

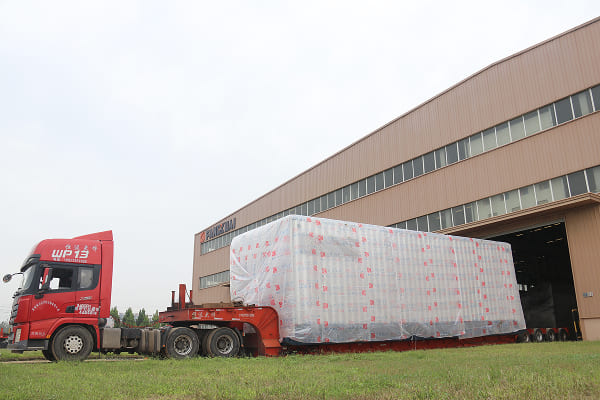

Industrial water tube boiler delivery
As a leading industrial boiler manufacturer, Fangkuai integrates cutting-edge R&D with rigorous manufacturing controls within its purpose-built facility. This commitment to technological boiler manufacturing translates directly to superior products: industrial boilers achieving exceptional efficiency ratings above 95%, proven to save end-users over 20% annually on fuel costs.
For global industries seeking reliable thermal energy solutions from a trusted boiler producer, this glimpse inside Fangkuai reveals the environmental standards and technical depth required to deliver genuine excellence. Choose a partner defined by more than just output; choose proven Boiler Efficiency and industrial recognition.
