Industrial Steam Boiler Types and System Optimization

Steam boilers are classified by three primary criteria: structural configuration, fuel source, and operating pressure. Below, we examine the most prevalent designs in industrial applications today.

Understanding Steam Boiler Classifications

Structural Designs: Balancing Power and Flexibility

The physical configuration of a steam boiler directly impacts its pressure capacity, efficiency, and suitability for specific applications.

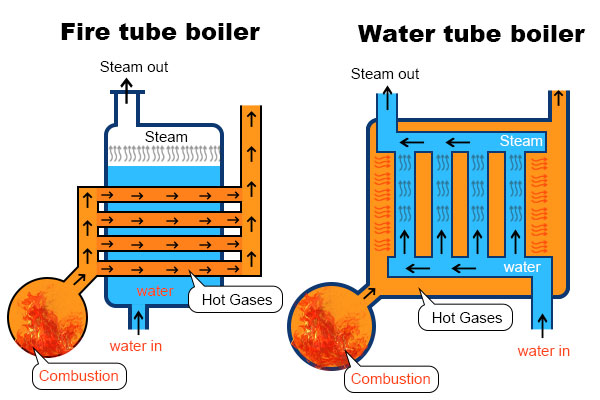

1. Water-Tube Boilers
   Water-tube designs channel water through tubes surrounded by combustion gases, enabling rapid steam generation under extreme pressures (up to 250 bar). Their ability to handle abrupt load fluctuations makes them a staple in power plants and heavy industries. Market analysts attribute their 2024 dominance to rising demand from utility sectors and energy-intensive manufacturing.

2. Fire-Tube Boilers
   In contrast, fire-tube models circulate hot gases through tubes immersed in water. While limited to moderate pressures, their compact footprint and simplified maintenance appeal to commercial heating systems and small-scale production facilities. Cost-effectiveness further solidifies their position in industries prioritizing budget over ultra-high pressure.

Fuel Variations: Aligning with Sustainability Goals

Fuel choices now reflect a balance between operational costs and environmental compliance.

• Coal-Fired Systems: Once ubiquitous, these face declining adoption due to emission regulations, though remain active in resource-rich Asian markets.

• Gas-Fired Units: Commanding 53% of global installations, natural gas boilers benefit from cleaner combustion and policy incentives, particularly in pharmaceuticals and food processing.

• Biomass & Electric Models: Emerging as alternatives, biomass boilers support carbon-neutral initiatives in Europe, while electric variants serve niche applications requiring zero onsite emissions.

Pressure Ranges: Matching Industrial Needs

• Low-Pressure (<20 bar): Ideal for space heating and basic process requirements.

• Medium-Pressure (20–80 bar): Supports textile dyeing and chemical synthesis.

• High-Pressure (>80 bar): Essential for turbine-driven power generation and oil refining.

Revolutionizing Efficiency: Steam Boiler + Air-Source Heat Pump Integration

Forward-thinking industries are merging steam boilers with air-source heat pumps (ASHPs) to slash energy use and emissions.

Operational Synergy
ASHPs recover waste heat from boiler exhaust or ambient air, converting it into supplementary thermal energy. During off-peak periods, the hybrid system prioritizes heat pump operation, reducing fossil fuel dependency. Advanced controllers dynamically balance loads, ensuring seamless transitions between heat sources based on real-time demand.

Measurable Benefits

• Cost Reduction: Facilities report 20–30% lower energy bills through optimized fuel-electricity ratios.

• Emission Compliance: Hybrid systems align with Zero Liquid Discharge (ZLD) mandates and decarbonization roadmaps.

• Future-Proofing: Retrofitting existing boilers with ASHPs offers a scalable transition path toward renewable integration.

A European food processing plant recently demonstrated this model’s viability: by integrating ASHPs, annual CO2 emissions dropped by 18%, while energy costs decreased by 27% without disrupting production.

Looking Ahead: Growth and Innovation

Projected to grow at 4.13% CAGR (2024–2029), the steam boiler market will see advances in hydrogen-compatible burners and AI-optimized hybrid systems. Companies adopting these technologies position themselves as sustainability leaders while gaining long-term cost advantages.

For tailored solutions, consult engineers specializing in hybrid thermal systems or review case studies from industries with similar operational profiles.
