How Industrial Steam Boiler Work: A Comprehensive Guide

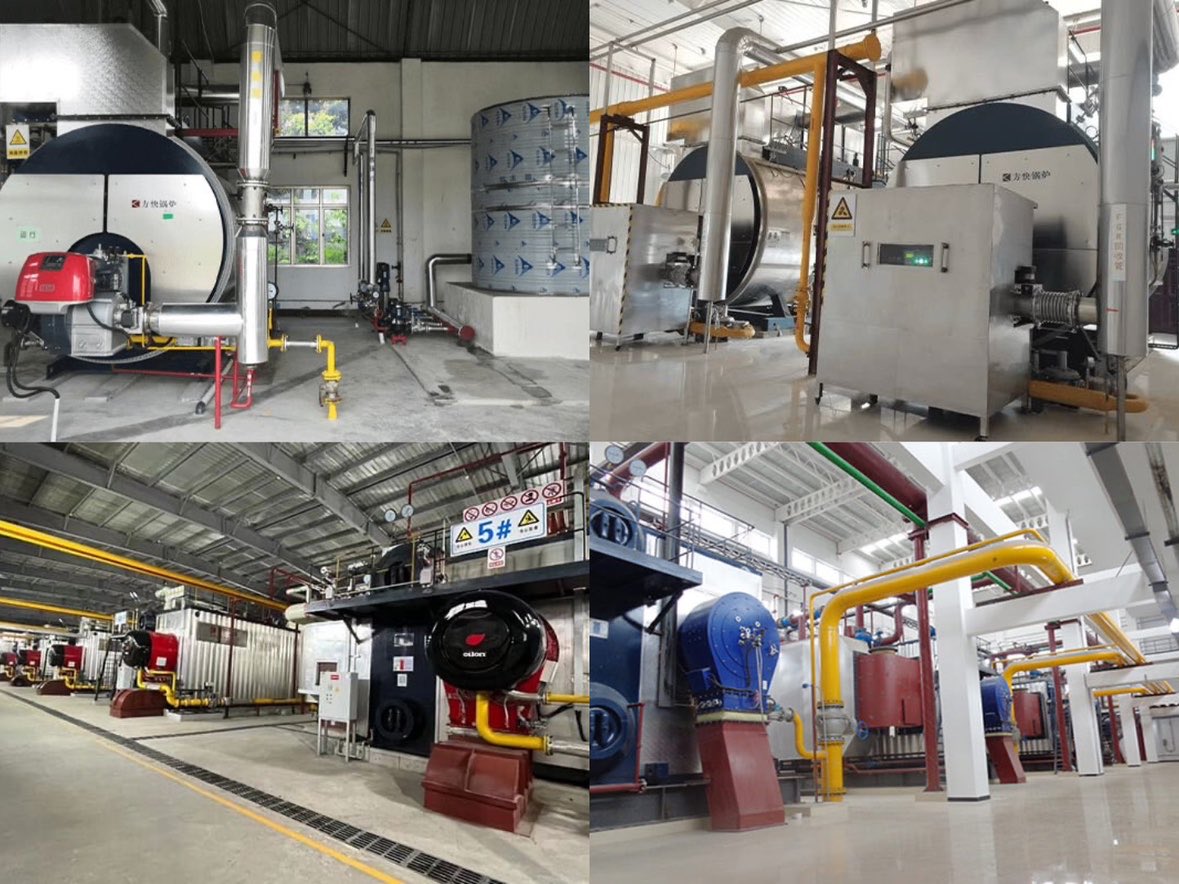

​​What Exactly Is an Industrial Steam Boiler?​

FangKuai ​​industrial steam boiler​​ is a high-capacity pressurized vessel engineered to generate steam for process-driven industries. Unlike residential units, ​​industrial boilers​​ operate at extreme pressures (0.7–14 MPa) with outputs ranging from 2 to 500 t/h. By burning fuel or using electric resistance, it converts heat into saturated or superheated steam. Built with heavy-gauge drums and high-alloy tube bundles, it’s engineered for continuous, around-the-clock reliability in refineries, chemical plants and food-processing facilities.

How Industrial Steam Boilers Work​

• ​​Heat Generation​​: Fuel (gas, oil, coal, biomass) burns in the furnace, creating high-temperature flue gases (up to 1,600°C). In electric boilers, resistive elements directly heat water.
• ​​Heat Transfer​​: Gases flow through tubes (fire-tube boilers) or around water-filled tubes (water-tube boilers), transferring heat via radiation, convection, and conduction. This raises water temperatures to boiling points.
• ​​Steam Formation​​: Pressurized water vaporizes into steam, collected in the steam drum. Higher pressure increases boiling points (e.g., 170°C at 0.8 MPa) .
• ​​Steam Distribution​​: Dry steam exits via main valves to power turbines, sterilizers, or reactors.
• ​​Water Recycling​​: Condensate returns to the feedwater system, while blowdown valves expel impurities .

​

​5 Major Industrial Steam Boiler Types Compared​​

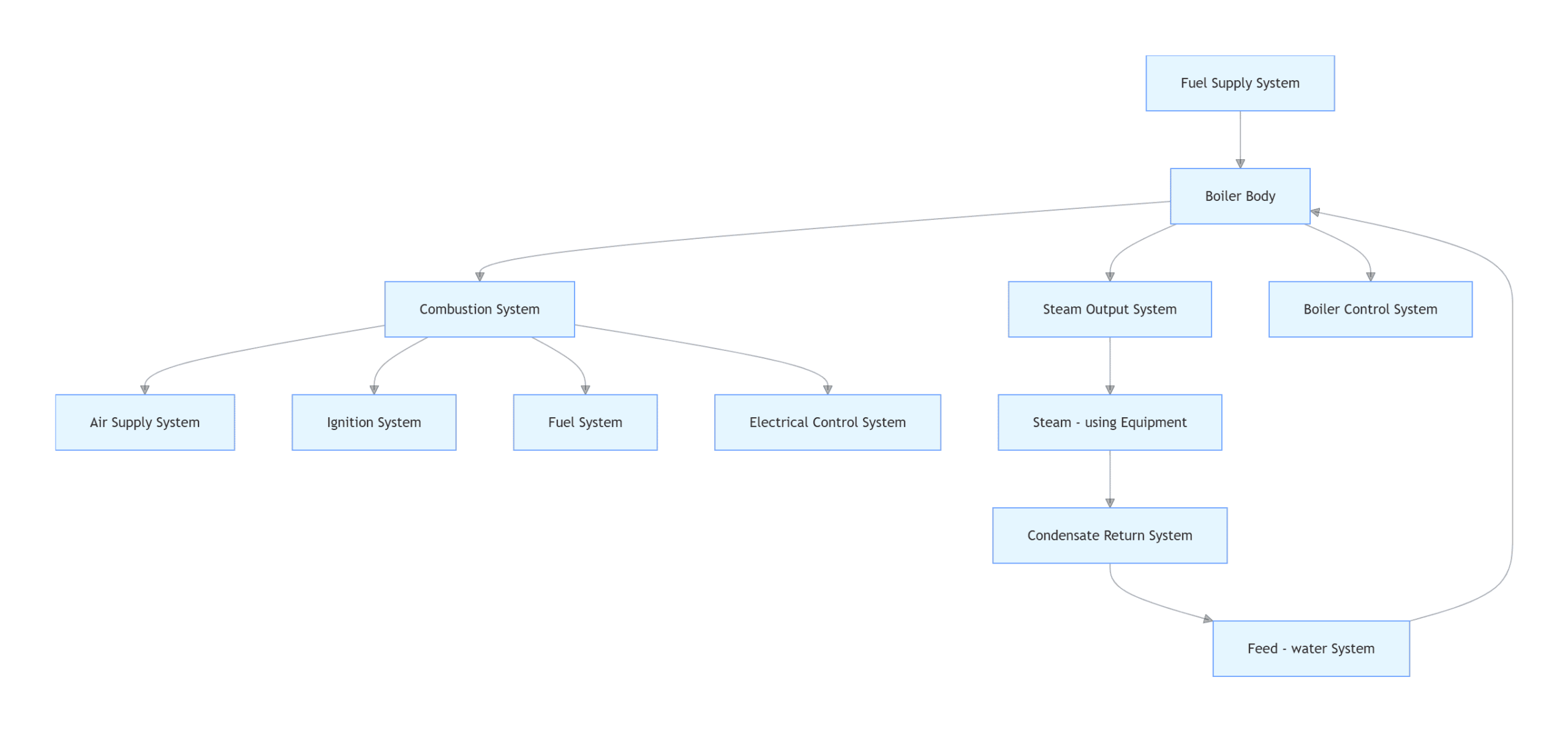

​​Industrial Steam Boiler Components​

​​Core Pressure Parts (ASME Sect I Compliant)​​:

• ​​Boiler Drum​​: 50–200 mm thick SA-516 steel; houses cyclones for steam-water separation.
• ​​Membrane Walls​​: 50–100 mm OD tubes welded with fin strips, forming gas-tight combustion chambers.
• ​​Superheater Sections​​: SA-213 T91/T92 alloys handle steam at 540°C for turbine plants.
• ​​Attemperators​​: Spray desuperheaters maintain precise steam temperatures (±3°C).

​​Critical Auxiliaries​​:

• ​​Feedwater Deaerators​​: Reduce dissolved oxygen to <0.005 cm³/L, preventing pitting corrosion.
• ​​Reverse Osmosis (RO) Systems​​: Maintain feedwater TDS <50 ppm to minimize scaling.
• ​​SCR/SNCR Units​​: Inject urea/ammonia to achieve <20 mg/Nm³ NOx in stack emissions.
• ​​Sootblowers​​: Retractable rotary units clear ash deposits hourly during coal operation.

​​Safety Instrumentation​​:

• Redundant PLCs monitor via 40+ points (pressure transmitters, RTDs, conductivity probes).
• Triple Modular Safety Systems (TMR) initiate emergency blowdown if pressure exceeds MAWP.

​FangKuai Industrial Steam Boiler Applications​

• ​​Sterile Processing (Hospitals)​​: 135°C saturated steam at 2.2 bar (EN 285 standard).
• ​​Paper Manufacturing​​: 16 bar steam drying cylinders for moisture control.
• ​​Petroleum Refining​​: 60 bar/480°C steam for crude distillation and hydrocracking.
• ​​Food Canning​​: 121°C steam retorts validated to FDA 21 CFR 113.
• ​​Pharmaceuticals​​: Clean Steam generators meeting WFI requirements (EP 5.1.9).

​​Beyond ASME: Global Standards for Industrial Boiler Safety​

​

Industrial boilers must comply with jurisdictional frameworks including:

• ​​Fabrication​​: EN 12952 (EU), GB/T 16508.1-2013 (China), IBR (India)
• ​​Combustion Safety​​: NFPA 85 (US), EN 676 (EU)
• ​​Emission Controls​​: EPA 40 CFR 63 Subpart DDDDD, EU Directive 2015/2193
  Certified A-Grade boilers undergo hydraulic tests at 1.5x design pressure and radiographic weld inspections.

​Optimizing Industrial Steam Boiler Performance: Maintenance Essentials​​

1. ​​Daily​​: Blowdown TDS control (maintain 3,000–5,000 ppm max).
2. ​​Monthly​​: Fire-side cleaning to remove sulfate deposits reducing heat transfer.
3. ​​Annual​​: NDE thickness testing on drums (+ safety valve calibration).
4. ​​Digital Monitoring​​: IIoT platforms like FangKuai iSystem track efficiency via O2 trim and combustion analytics.

​Maximize Your Industrial Steam Boiler’s Lifespan & Efficiency​​
Industrial steam boiler performance hinges on precision engineering and proactive maintenance. As ISO 9001-certified industrial boiler specialists, FangKuai delivers ​​bespoke steam solutions​​ engineered to your exact pressure, fuel, and capacity requirements – with TÜV-validated system efficiencies up to 98.6%.

​​Get A Custom Industrial Steam Boiler Proposal​​ →
[Contact FangKuai Engineers] for a plant-wide steam audit and lifecycle cost analysis.

Compliance Footnotes: ASME BPVC Section IV, EN 12953-6, ISO 5730, NB-23 RTC-1 AWS D1.1 Welding Protocols
