Hot Water Boiler Capacity for 1,000 Residences

A residential community with 1,000 residents requires a hot water boiler of around 20MW. The hot water demand and ambient temperature ultimately determine the boiler’s space heating and domestic hot water (DHW) capacity.

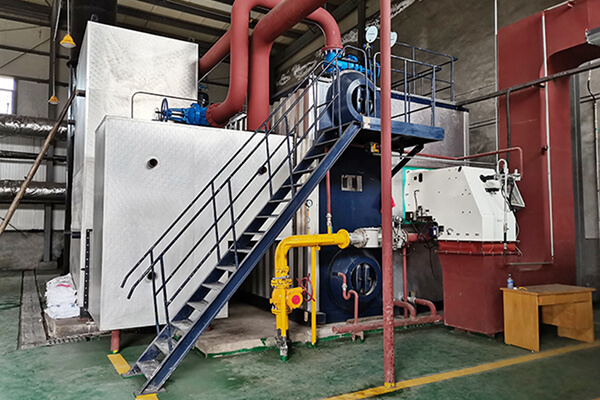

water tube hot water boiler

1. Space-Heating Load

• Rule-of-Thumb Load Per Home: An average modern home’s peak heating load typically falls between 10 kW and 20 kW, depending on insulation, climate, and internal gains.

• Total Undiversified Load: For 1,000 homes, that equates to 10,000 kW–20,000 kW (10–20 MW).

• Diversity Factor: It’s highly unlikely that every home will demand peak heat simultaneously. CIBSE CP1 “Heat Networks” guidance provides standardized diversity factors for district systems to avoid oversizing. A conservative engineering assumption is a diversity factor of around 0.6 for space heating, yielding:

  Diversified Heating Load = Undiversified Load × Diversity Factor

  = (10,000–20,000 kW) × 0.6

  = 6,000–12,000 kW (6–12 MW)

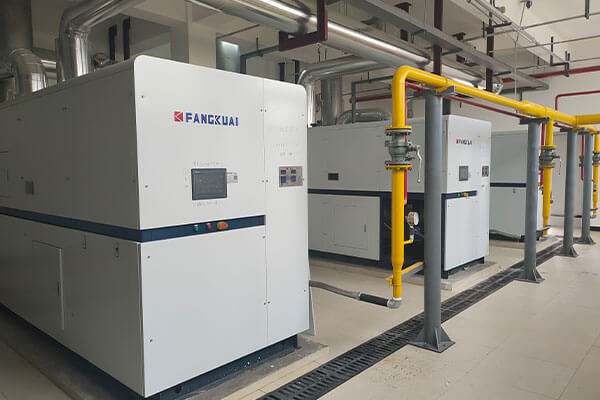

T6 Vacuum Hot Water Boiler

2. Domestic Hot-Water Load

• Combi-Boiler Equivalents: A typical combi-boiler for a single home delivers ~25–35 kW of DHW output to satisfy simultaneous showers, taps, and appliances.

• Total Undiversified DHW Load: 1,000 homes × 25–35 kW = 25,000–35,000 kW (25–35 MW).

• Diversity Factor: Instantaneous hot-water peaks are shorter and more staggered; industry practice often applies a diversity factor near 0.2–0.3 for DHW in district systems. Assuming 0.25:

  Diversified DHW Load = (25,000–35,000 kW) × 0.25

  = 6,250–8,750 kW (6.25–8.75 MW)

T7 Vacuum Hot Water Boiler

3. Combined Boiler Capacity & Modular Design

Summing the diversified loads gives the boiler’s required continuous output:

Total Boiler Output = Diversified Heating Load + Diversified DHW Load

≈ (6–12 MW) + (6.25–8.75 MW)

≈ 12.25 MW – 20.75 MW

Recommendation:

• Nominal Capacity: Specify a boiler (or boiler bank) rated for at least 20 MW to ensure coverage of extreme conditions plus a margin.

• Modular Configuration: Use several smaller modules (e.g., four 5 MW units) for operational flexibility, staged start-up, and maintenance without full shutdown.

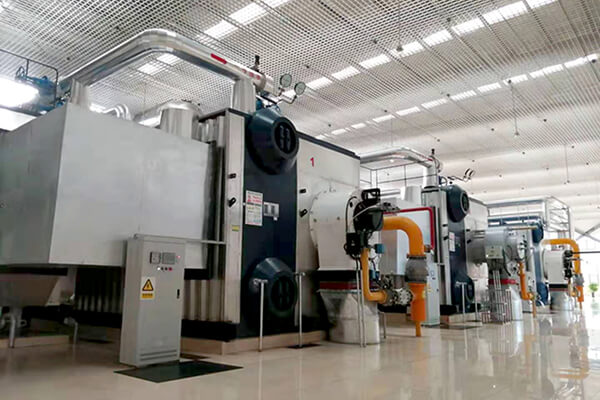

Modular SZS water tube hot water boiler

4. Practical Considerations

• Controls & Staging: Implement cascade control to fire only as many modules as needed, optimizing efficiency at partial loads.

• Load Profiling: Analyze hourly and seasonal usage data—especially DHW peaks—to refine diversity factors.

• Future Proofing: Allow space for additional modules or hybridization with renewable sources (e.g., solar-thermal preheat) to meet long-term sustainability goals.

Get 1,000 residential boiler solutions for free

Conclusion

For a 1,000-unit residential development, a centralized hot water boiler system of about 20 MW (nominal) delivered via modular units will reliably meet both space-heating and domestic hot-water demands, while diversity factors help avoid unnecessary oversizing. Proper control strategy, ongoing load monitoring, and design flexibility will ensure comfort, efficiency, and scalability.
