Fire tube Boiler Heat Exchanger Smoke Tube – Wing Tube

Wing tubes—branded by FangKuai as Ultra-Speed Smoke Cooling Tubes—are patented heat-exchange elements designed to supercharge fire-tube boiler performance. Their winged fins dramatically boost surface area and penetrate the hot flue-gas stream for rapid cooling and maximal energy recovery. As a result, boilers equipped with these tubes deliver higher thermal efficiency in a smaller footprint while remaining easy to service.

What Are Wing Tubes?

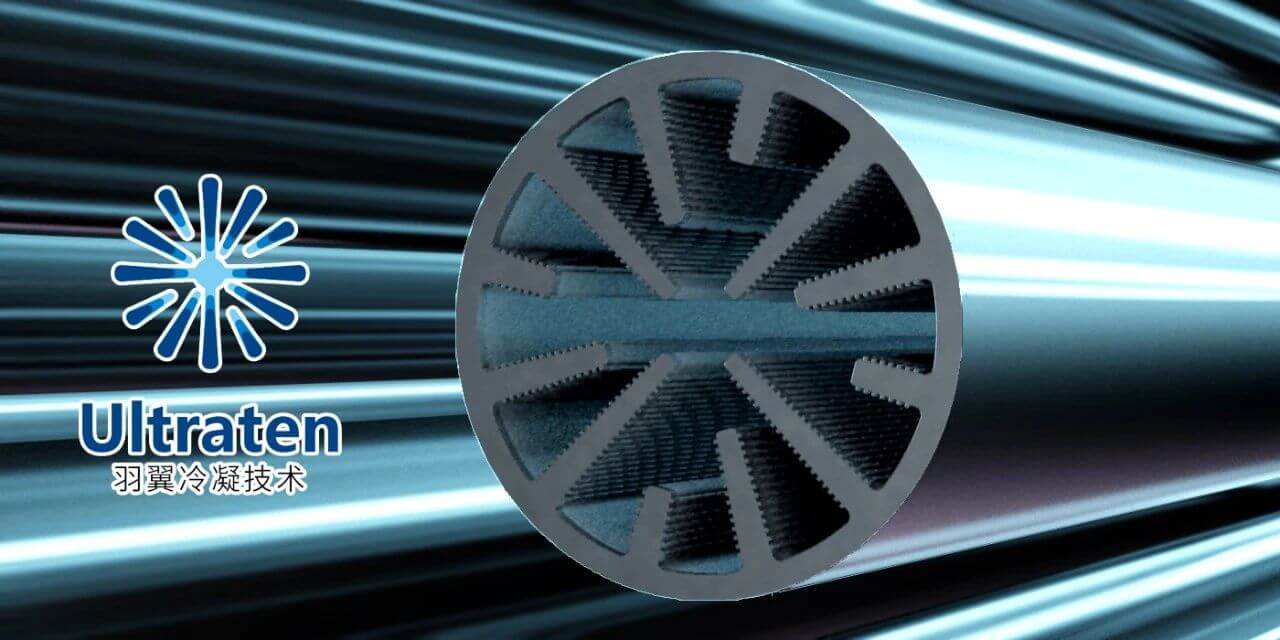

Wing tubes feature cross-sectional “wings” or fins welded onto the main smoke tube, creating a highly turbulent flow that disrupts insulating gas layers. This geometric innovation sets them apart from smooth tubes and conventional finned designs.

Working Principle

As combustion gases flow over the wing tube surface, the fins force the flue stream into chaotic eddies, thinning thermal boundary layers and accelerating heat transfer. By plunging deep into the hottest gas core, wing tubes recover more sensible and latent heat before exhaust, elevating boiler efficiency.

Key Benefits

Enhanced Heat Transfer

Because winged fins can increase effective surface area up to five times, boilers often see a thermal-efficiency jump of 15% or more over smooth-tube models.

Space-Saving Design

Higher heat-flux density means fewer tubes are needed. FangKuai’s integrated boilers shrink floor space by over 30%, making them ideal for tight mechanical rooms.

Anti-Scaling & Easy Maintenance

The fire-tube configuration combined with wing-tube geometry discourages soot and scale accumulation, allowing quick visual inspections and cleaning through the front smoke-box door.

Conclusion

FangKuai’s patented wing tubes deliver an unbeatable combination of high thermal performance, compact design, and low upkeep requirements. For industrial and commercial applications seeking greener, cost-effective steam or hot-water solutions, wing-tube-equipped fire-tube boilers stand out as a top choice.
