Diesel Steam Boiler – Factory direct sales

Fangkuai boiler manufacturer provides dozens of models of diesel steam boilers from 2 to 150t/h, which support skid mounting. Steam dryness > 99%.

2 – 30 t/h Steam Solutions

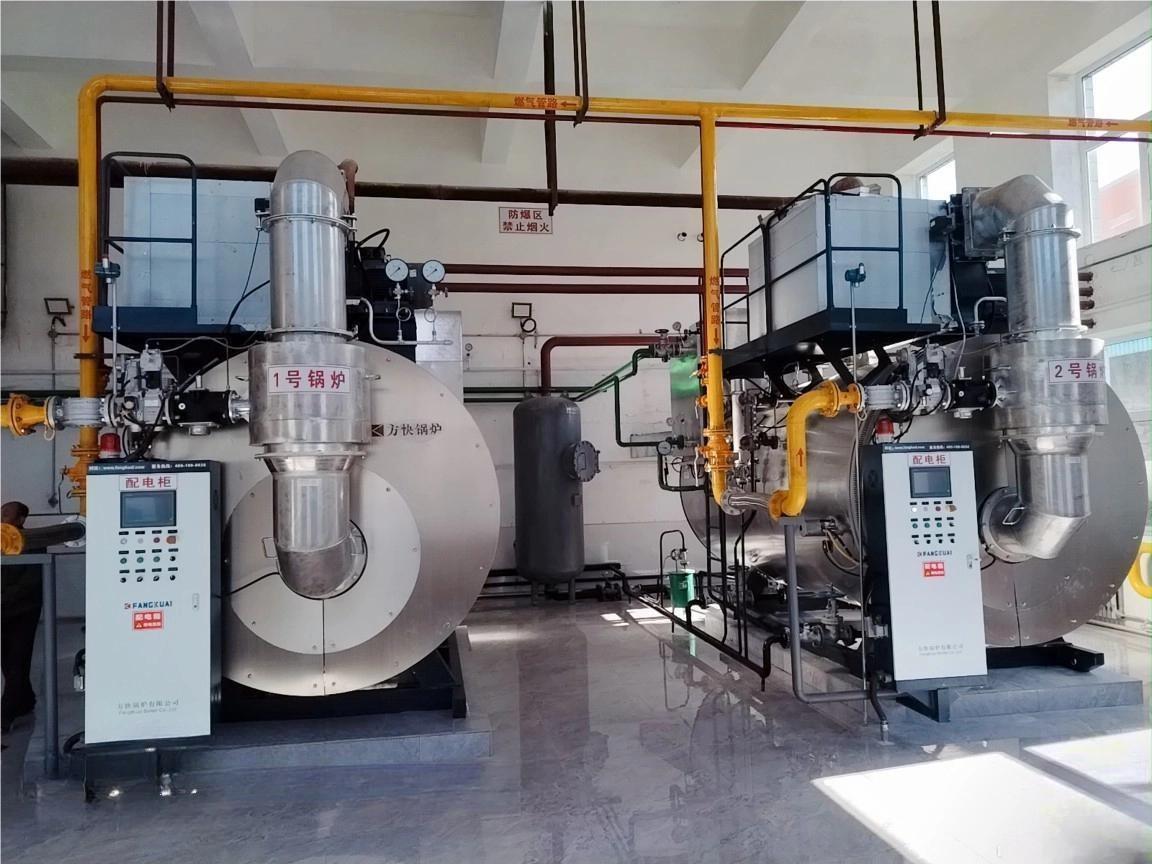

Euromonitor 6 (1 – 10 t/h)

The Euromonitor 6 condensing fire‑tube boiler is optimized for 1 – 10 t/h steam at 1.25 MPa. Key features include:

• Thermal efficiency up to 103.44% via finned‑tube condensation recovery.

• Ultra‑low NOₓ (<30 mg/Nm³) through fully‑premixed burner technology.

• Compact footprint, saving 40–50% of floor space.

• Rapid steam readiness (16 min cold‑start to continuous output).

• Fuel flexibility: diesel, heavy oil, LPG, natural gas, etc.

Euromonitor 7 (2 – 30 t/h)

For higher loads (2 – 30 t/h), the Euromonitor 7 advances condensing performance with:

• Thermal efficiency between 97% and 103.8%, supported by flue‑gas recirculation and latent‑heat recovery.

• ±0.2 °C feed‑water stability across –10 °C to 150 °C infeed, crucial for sterile and pasteurization processes.

• NOₓ emissions down to 28 mg/Nm³ to meet Class 1 standards.

• Corrosion‑resistant combustion chamber, ensuring 99.8% uptime in high‑humidity environments.

• Price range: $14 000 – $210 000.

30 – 80 t/h Steam Solutions

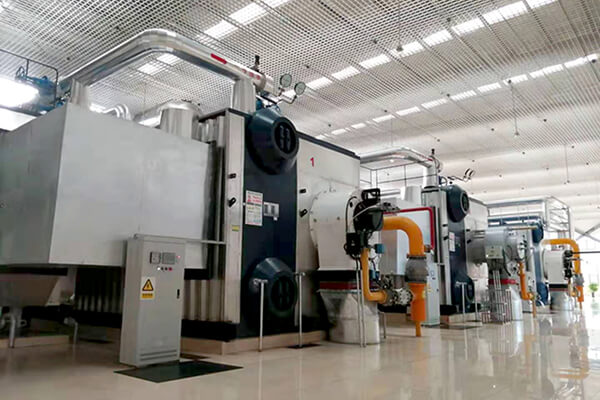

SZS “D‑Type” Water‑Tube Boiler (10 – 50 t/h)

40 t/h szs water tube steam boiler

The SZS series vertical dual‑drum water‑tube boiler ramps from 10 – 50 t/h with:

• Forced circulation and curved tube geometry that boost heat‑transfer efficiency by 15–18% while self‑scrubbing to prevent scale.

• Thermal efficiency up to 104% via cascade waste‑heat recovery and flue‑gas condenser (<100 °C exhaust).

• Operating pressure up to 2.5 MPa for stable performance under load swings.

• Fuel options: diesel, natural gas, biogas, blast‑furnace gas and more.

• Pre‑assembled skid design for 60% faster install and easy maintenance.

Integrating Euromonitor 7 at the 30 t/h Threshold

At the upper end of this range, the Euromonitor 7 can also be specified for a single‑unit 30 t/h steam supply, offering the same advanced condensation and controls described above.

50 – 150 t/h Steam Solutions

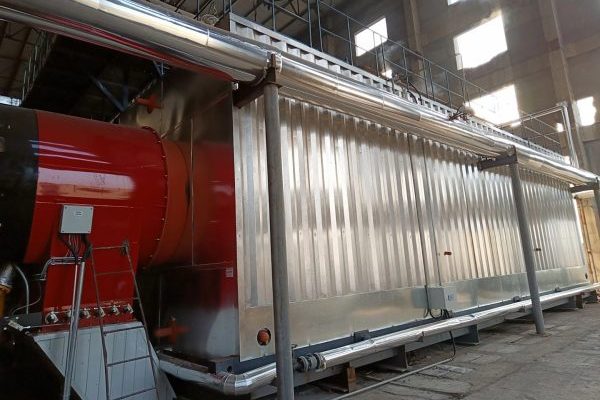

65ton 3.82Mpa 450℃ nszs steam boiler

NSZS Vertical Water‑Tube Steam Boiler

For large‑scale demands (10 – 150 t/h), the NSZS series features a space‑saving double‑drum design:

• 99.1% thermal efficiency (LHV) with SA‑213T12 alloy tubes and full‑membrane walls to keep casing below 45 °C.

• Superheated steam up to 250 °C; once‑through variants exceed 540 °C (for ≥80 t/h models).

• Hybrid FGR + SCR combustion to hold NOₓ <30 mg/Nm³ under EU Ecodesign 2015/1189.

• Siemens PLC control driving 22% fuel savings and 99.98% uptime through triple‑redundant safety systems.

• Fuel flexibility including diesel, heavy oil, natural gas, coke oven gas, biogas, etc.

Contact US for customized solutions

Summary

Fangkuai diesel steam boiler product portfolio covers 2-150 tons/hour steam capacity, with the following advantages:

• Modular boiler system design to prevent downtime risks.

• Can use diesel, light oil, heavy oil, natural gas, media, and other liquid and gas fuels.

• Efficiency>95%, low emission NOₓ <30mg/Nm³ (condensing recovery, FGR, SCR, and ultra‑low NOₓ).

• Industrial PLC interface, remote monitoring, predictive maintenance, boiler can be started and stopped with one button.

Whether for food and beverage, pharmaceuticals, chemical processing or heavy industry, these three series deliver reliable, compliant steam generation tailored to every process requirement. For customized solutions and pricing, contact Fangkuai Boilers today.
