3 Energy-Efficient Steam Boiler Solutions for Sugar Industry

In sugar (sucrose) production, steam boilers drive both evaporation and crystallization. A typical 10 t/h boiler uses a lot of fuel and releases a great deal of CO₂, so cutting energy use isn’t just good for the bottom line—it’s better for the planet. The following will introduce three steam boiler energy-saving design options suitable for the sugar industry: running the boiler with a mixture of gas and hydrogen; using multiple small boilers instead of one large boiler; and pairing a gas boiler with an air source heat pump.

1. Gas-Hydrogen Hybrid Boilers

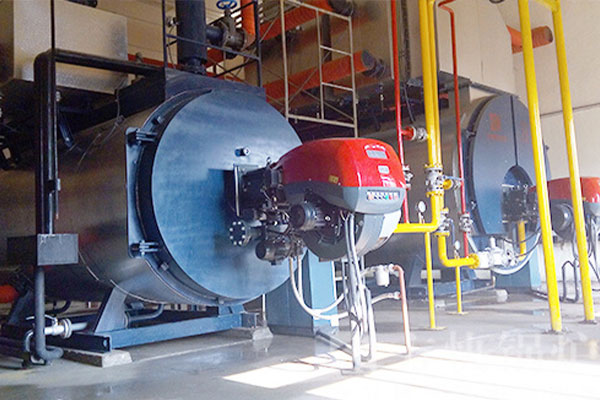

Oil and gas boiler (can use a variety of fuels)

Overview: Hybrid boilers can use a blend of natural gas and hydrogen and are equipped with a condensate recovery system to provide a transitional solution for the decarbonization transition.

Implementation:

• Boiler Selection: Choose boilers compatible with hydrogen blends, such as the WNS series, which can handle various fuels .

• Fuel Infrastructure: Ensure the availability of hydrogen supply and appropriate storage facilities.

• Safety Measures: Implement safety protocols to manage hydrogen’s flammability and prevent leaks .

Example Configuration:

• Capacity: 2 – 30 tons/hour.

• Fuel Mix: Up to 20% hydrogen blended with natural gas.

Benefits:

• Reduces CO₂ emissions compared to pure natural gas combustion.

• Allows gradual transition to hydrogen as infrastructure develops.

• Collect high-temperature condensate discharged from steam thermal systems to achieve triple recovery of heat energy, water resources and softened water.

2. Modular Boiler Systems

Multiple steam boilers in a modular system

Overview: Modular systems consist of multiple smaller boilers operating in tandem, offering flexibility and redundancy.

Implementation:

• Design Options:

  • 4 units × 6 tons/hour.

  • 2 units × 8 tons/hour + 1 unit × 4 tons/hour.

  • 10 units × 8 tons/hour + 2 units × 4 tons/hour.

• Control Systems: Integrate PLC controls for synchronized operation and load management.

Benefits:

• Enhanced reliability; maintenance can occur without complete shutdown.

• Scalable to match production demands.

• Improved energy efficiency through load optimization.

3. Integration of Air-Source Heat Pumps

Boiler heat pump combination

Overview: Air-source heat pumps (ASHPs) can supplement steam generation by utilizing ambient heat, reducing reliance on fossil fuels.

Implementation:

• System Selection: Consider high-temperature ASHPs capable of producing steam up to 165°C, such as FangKuai’s Boiler 2.0 .

• Integration: Pair ASHPs with existing boilers to preheat feedwater or handle base loads.

• Energy Source: Utilize renewable electricity to maximize environmental benefits.

Benefits:

• Significant reduction in CO₂ emissions.

• Lower operational costs over time.

• Enhanced system efficiency through waste heat recovery.

Conclusion

Selecting the optimal solution depends on site-specific factors—fuel costs, available space, steam demand profile, and capital budget. A detailed feasibility study, incorporating lifecycle cost analysis and emissions modeling, will pinpoint the best pathway to a leaner, greener sugar processing plant.
