Low-Pressure Steam Boiler vs High-Pressure Steam Boiler

1. What Is a Low-Pressure Steam Boiler and a High-Pressure Steam Boiler?

A low-pressure steam boiler is a steam generating system designed to produce steam at relatively modest pressure and temperature levels, typically for heating, humidification, or light-duty industrial uses. The steam produced is often saturated (i.e. not superheated), and the system is simpler in design, safety requirements are lower, and the materials and construction stresses are less demanding.

By contrast, a high-pressure steam boiler is engineered to create steam at pressures above the threshold defining “low pressure,” and often at higher temperatures (sometimes superheated). High-pressure steam boilers are used in industrial processes requiring intensive heat, power generation, mechanical drives, or where high heat transfer rates are necessary.

In formal boiler codes (for example in U.S. or ASME standards), the dividing line between low and high pressure is often based on the maximum allowable working pressure (MAWP). If a boiler’s MAWP is 15 psi (≈ 1.03 bar gauge) or below, it is usually classified as a low-pressure steam boiler; anything above that is considered high pressure.

Thus:

• Low-pressure steam boiler: MAWP ≤ 15 psi
• High-pressure steam boiler: MAWP > 15 psi

However, in industrial practice, “high pressure” boilers may operate at tens, hundreds, or even thousands of psi, and sometimes reach specialized systems (e.g., supercritical boilers) beyond conventional classification.

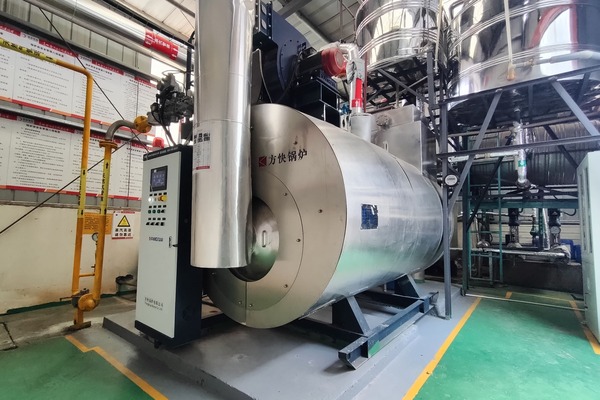

Low-pressure steam boiler

2. Differences Between Low-Pressure and High-Pressure Steam Boilers

Below is a detailed breakdown of the principal differences between a low-pressure steam boiler and high-pressure steam boiler:

One interesting counterintuitive point is that low-pressure steam can travel faster in pipes under certain loads, because high-pressure steam occupies less volumetric space and therefore moves more slowly for the same heat load.This arises from steam velocity charts: at low pressures the volumetric expansion is greater, so the velocity must increase to carry the same load.

Also, low-pressure systems often use thermostatic steam traps, whereas high-pressure systems more often use disc-type traps (compact, robust under high temperature and pressure) for condensate removal.

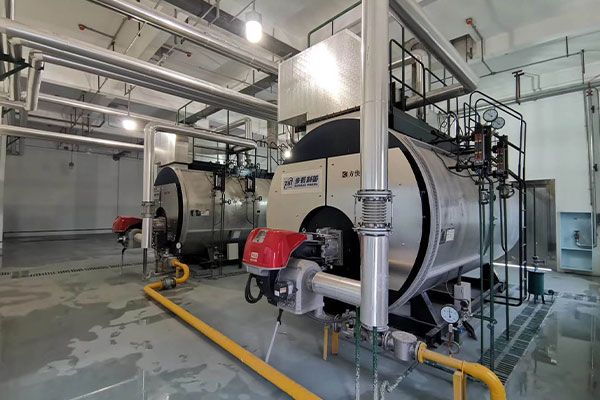

High-pressure steam boiler

3. Pressure Ranges for Low-Pressure vs High-Pressure Steam Boilers

As noted above, the canonical dividing line is 15 psi (≈1.03 bar gauge). That is to say:

• Low-pressure steam boilers: up to 15 psi
• High-pressure steam boilers: above 15 psi

But in industrial / engineering contexts, you often see further subdivisions:

• Medium-pressure steam: sometimes defined between 15 psi and some intermediate value
• High-pressure steam: often up to, say, 150 – 600 psi (or higher) depending on industrial needs
• Very-high-pressure or ultra-high-pressure / supercritical boilers: above typical high-pressure, sometimes 3,200 psi or more in power plant systems

In more engineering-scale terms, boilers may operate at, for example, 300 psi, 600 psi, or even 1,500 psi depending on capacity and industrial process requirements. Some references state that high-pressure steam systems “range from 15 psi to 1,500 psi or higher.” In another place, high-pressure boilers are said to reach pressures above 3 MPa (≈435 psi), whereas low-pressure boilers commonly operate under 2 MPa (≈290 psi) in heavier industrial settings.

Thus, while the nominal boundary is 15 psi for many simpler systems, in practice you may see high-pressure systems in the dozens to hundreds of psi (or more) range.

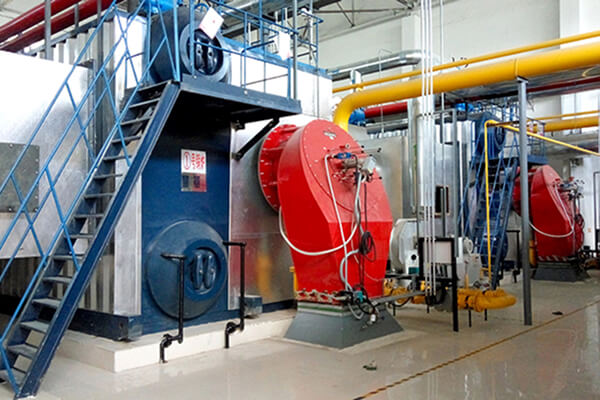

1.0 – 5.0Mpa High-pressure steam boiler

4. Temperature Characteristics of Low-Pressure vs High-Pressure Steam Boilers

Steam temperature is closely tied to pressure. For saturated steam, each pressure corresponds to a saturation temperature. Superheated steam (above the saturation temperature) may also be used in high-pressure systems.

• Low-pressure steam typically is saturated steam with temperatures up to about 250 °F (≈121 °C) or somewhat in that vicinity.
• Because low-pressure steam is not superheated, it generally stays close to the saturation curve and does not exceed too much beyond that.
• High-pressure steam frequently operates at higher saturation temperatures and may be superheated. For example, a high-pressure system at 150 psi would have a saturation temperature well above 121 °C; superheating could push steam to several hundred degrees Celsius, depending on design and application.

In advanced power generation, supercritical boilers operate at extremely high pressures and temperatures, often exceeding 500 °C or more, where distinct liquid and vapor phases no longer exist.

One caveat: in many practical industrial systems, steam is not wildly superheated unless needed, since for many heat transfer tasks saturated steam is sufficient and less prone to corrosion or control issues.

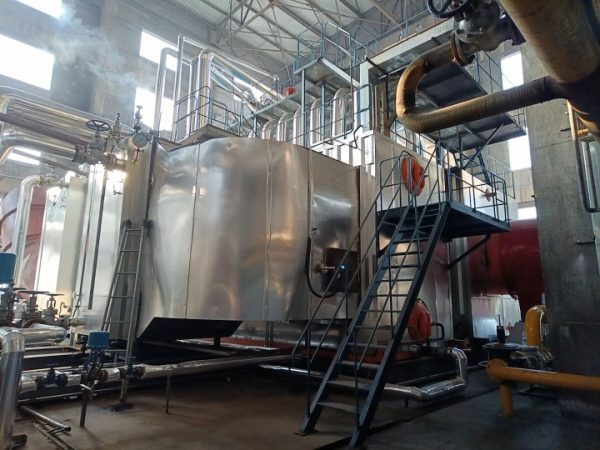

Oil-fired gas superheated steam boiler

5. Application Scenarios: Where Each Type Is Used

Low-Pressure Steam Boiler Applications

Because of their lower cost, simpler design, and adequate performance for moderate heating tasks, low-pressure steam boilers are widely used for:

• Building heating / HVAC: universities, hospitals, office complexes, multi-family housing, schools (central steam heating).
• Humidification & sterilization in institutional or commercial environments
• Food processing / small-scale industrial heating, especially where only moderate temperatures are needed (for example, blanching, pasteurization)
• Laboratories, laundries, sterilizers for hospitals or clinics
• Wood drying, textile preheating, modest chemical processes where high temperatures are not essential

In these cases, the lower energy cost and simpler maintenance often outweigh the performance advantage of high-pressure steam.

High-Pressure Steam Boiler Applications

High-pressure steam is favored where heat demand is intense, and heat transfer speed or ability to drive mechanical work is crucial. Common applications include:

• Power generation & cogeneration: driving turbines, producing electricity
• Petrochemical / chemical plants: distillation, reforming, cracking, reactors
• Refining, oil & gas: processes that require high temperatures and pressure
• Textiles, pulp & paper, food & beverage in large scale industrial operations
• Rubber vulcanization, autoclaves, high temperature sterilization
• Large-scale steam distribution / industrial parks where steam must travel distances with minimal losses

In many such applications, steam has to remain at high temperature and energy density, which only high-pressure systems can provide. High-pressure steam also supports flash steam recovery phenomena, where dropping pressure causes part of the condensate to vaporize, which can improve energy utilization.

Additionally, high-pressure systems may support long-distance steam transmission with less loss, smaller piping, and more efficient heat transfer to end users.

Contact us today to get real-world case studies tailored to your industry.

6. What Is the “Ideal” Steam Pressure?

The notion of an “ideal” steam pressure depends heavily on the application. There is no one-size-fits-all pressure that is ideal for all cases. Several factors influence what pressure is optimal:

• Heat demand and load profile: Low loads may favor lower pressures for efficiency and lower losses; high loads or rapid heat transfer may necessitate higher pressure.
• Distance and piping network: Over long piping runs, pressure drop is significant; higher pressure helps mitigate that.
• Temperature requirement at the point of use: If end devices require elevated temperature or driving forces, higher pressure may be needed.
• Economics: Higher pressure entails higher capital cost, more stringent materials, more maintenance. So a balance must be struck between capital cost and operational efficiency.
• Safety, regulation, and reliability: Higher pressure increases risk and regulatory burden, so choosing overly high pressure may not be justified.
• Steam quality, dryness, superheat, and control flexibility: Some systems prefer saturated steam close to saturation line to reduce control complexity; superheating or high pressure adds complexity.

In practice, many institutional steam systems run in the low-pressure regime (1–10 psi, sometimes up to 15 psi) because the heating loads are modest and the simplicity and safety are desired. Industrial plants, depending on process demands, may choose pressures from 75 psi, 150 psi, 300 psi, or more — whichever gives the best tradeoff among efficiency, capital cost, distribution losses, and equipment compatibility.

Thus, the “ideal” steam pressure is the one that meets the process or heating requirement with minimal cost and acceptable safety margins. In designing a steam system, engineers often simulate performance and do economic trade-offs to pick the pressure class.

Contact us to customize your industrial steam boiler solution

7. How to Choose Between a Low-Pressure Steam Boiler and a High-Pressure Steam Boiler?

When deciding between a low-pressure steam boiler and high-pressure steam boiler, you should consider multiple factors. Here is a structured decision procedure:

A. Assess Process / Heat Demands

• What temperature and pressure does your end-use equipment require?
• How much heat (in BTU or kW) must be delivered, and how quickly?
• Is there mechanical work to be driven by steam (e.g. turbines)?
  If the demands are modest (heating, humidification, sterilization at moderate temperature), low-pressure steam may suffice. If you need high temperature, high heat flux, or mechanical energy, high-pressure is likely necessary.

B. Evaluate Distribution & Piping Losses

If steam must travel far, pressure drop will reduce performance. High-pressure steam is more robust to piping losses, so for larger facilities or steamsheds, high pressure may be more efficient.

C. Capital Cost vs Operating Cost Tradeoffs

• Low-pressure boilers are cheaper to build, use less stringent materials, and cost less in maintenance.
• High-pressure boilers cost more to engineer, greater investment in safety, materials, inspection, and control systems—but may yield better efficiency or ability to serve demanding loads.

You should perform a life-cycle cost analysis: compare total cost of ownership, including fuel, maintenance, downtime, and capital amortization.

D. Regulatory, Safety & Inspection Requirements

High-pressure boilers are subject to stricter safety codes, inspection intervals, certifications, and liability. Ensure you are comfortable with the regulatory burden and have the engineering capacity to manage high-pressure systems.

E. Flexibility & Future Expansion

If you anticipate growth or increased demand, choosing a higher pressure class might provide room for expansion. On the other hand, if your loads are fixed and modest, low-pressure offers simplicity.

F. Steam Quality & Water Treatment Constraints

High-pressure systems generally demand higher water purity, better blowdown control, and more sophisticated water treatment. If your facilities struggle with water treatment, low-pressure may be safer.

G. Safety Margin & Redundancy

Higher pressures require more safety devices, relief valves, control systems, and fail-safe designs. Choose a pressure class you are comfortable operating reliably and safely.

Decision Summary

1. If your use is predominantly building heating, modest industrial heating, humidification, choose low-pressure steam boiler (≤ 15 psi).
2. If you require high heat transfer, mechanical power, or long-distance steam distribution, choose high-pressure steam boiler.
3. Conduct a techno-economic analysis: evaluate capital vs operating cost.
4. Consider regulatory and safety constraints.
5. Evaluate water treatment capacity and steam quality needs.
6. Factor in future expansion and flexibility.

In many real installations, a hybrid approach is used: generate steam at a higher pressure and then reduce pressure locally (via pressure reducing valves) to supply low-pressure steam to heating equipment. This allows advantage of high-pressure generation and distribution, while still serving low-pressure end-users.

8. Conclusion

In summary:

• The division between a low-pressure steam boiler and high-pressure steam boiler is fundamentally based on pressure level — typically ≤ 15 psi for low pressure, >15 psi for high pressure.
• They differ significantly in construction, temperature capability, energy density, piping behavior, safety, maintenance requirements, and application suitability.
• Low-pressure steam is ideal for heating, humidification, and light industrial use, whereas high-pressure steam is essential for power generation, heavy industrial processes, and long-distance steam distribution.
• There is no universally “ideal” steam pressure — the optimal pressure depends on system requirements, distance, cost tradeoffs, regulatory constraints, and future scalability.
• In selecting between low-pressure and high-pressure boilers, you must balance upfront cost, operating efficiency, safety, maintenance, and application demands.

If you like, I can generate a Chinese translation of this article, or adjust it to a particular industrial sector (e.g. food, chemical, power plant). Would you like me to do that?

FAQ

Q1: Can a low-pressure steam boiler ever operate above 15 psi?
A: By definition, no — a boiler rated as “low-pressure” has an MAWP of 15 psi or below. If it ever operates beyond that, it violates its design and safety certification.

Q2: Why not always choose a high-pressure steam boiler for more flexibility?
A: Because high-pressure systems cost more to build and maintain, require stricter safety controls, demand superior water quality, and may incur higher regulatory burden. If your loads are modest, low-pressure systems offer simpler and more economical operation.

Q3: If I have a facility needing low-pressure steam, but located far from the boiler, is high pressure beneficial?
A: Yes — using high-pressure steam for transmission and then locally reducing the pressure can reduce losses and pipe size, improving efficiency. This hybrid strategy is common in large campuses or industrial complexes.

Q4: How often must high-pressure boilers be inspected compared to low-pressure ones?
A: It depends on local code, but generally high-pressure boilers face more rigorous inspection cycles, safety audits, and certifications. High-pressure systems must comply with stricter standards of design, operation, and safety relief systems.

Q5: Do I always need superheated steam with high-pressure boilers?
A: Not always. While high-pressure boilers may support superheating, many industrial steam systems use saturated steam at high pressure. Superheating is added when necessary to avoid condensation, improve thermal efficiency, or when required by specific processes.
