What is a hot-water boiler?

A hot-water boiler is a mechanical system that heats water and circulates that hot water through pipes, radiators, or heat exchangers to provide space heating or process heat. Unlike steam boilers that boil water into steam, hot-water boilers operate below boiling point and deliver heated liquid under pressure to distribution systems used in buildings, industrial plants, and district heating networks.

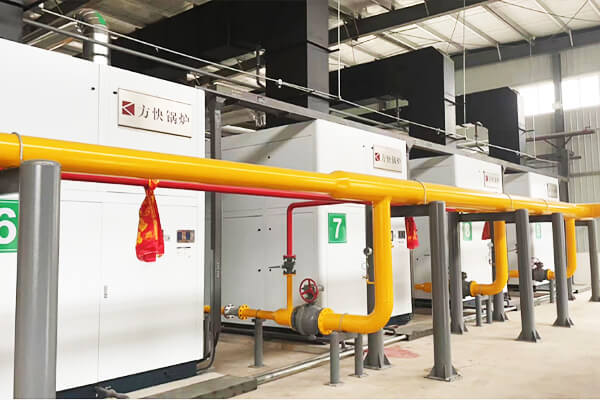

Vacuum hot water boiler T6 series case site

Hot-water boiler vs. water heater — what’s the difference?

Although the terms are sometimes used loosely, they serve different primary purposes: a boiler is typically part of a central heating or hydronic system and supplies hot water for space heating (radiators, underfloor heating) or for large process loads; a water heater supplies domestic hot water for taps, showers and appliances and usually stores hot potable water for on-demand use. Boilers may also supply domestic hot water when combined with a tank or heat exchanger, but their main design and controls are optimized for continuous heating and circulation rather than storage of potable water.

Common types of hot-water boilers (and when each is used)

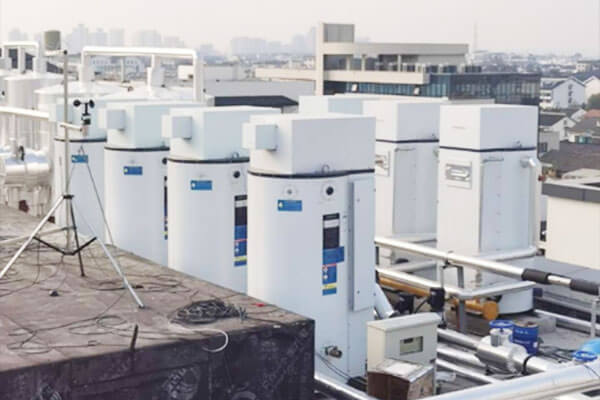

1. Vertical Hot-Water Boilers

Capacity: 100 kW – 1,400 kW (0.1 – 1.4 MW)
Core selling point: Compact footprint, easy modular parallel operation, low installation cost.
Technical / operation highlights:

• Vertical, space-saving layout ideal for plant rooms with limited floor area.

• Easily paralleled for redundancy (N+1) and continuous operation during maintenance.

• Standard automatic combustion control and simple PLC / touchscreen interface for low operator training needs.

• Multi-fuel options (natural gas, light oil) and optional condensing models for higher seasonal efficiency.
  Typical applications: Small commercial buildings, retail outlets, apartment blocks, and confined mechanical rooms.
  Tagline: Big heat from a small footprint — space-saving and easy to expand.

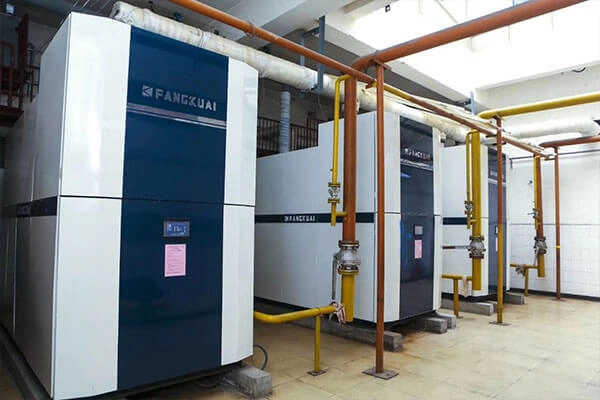

2. Commercial Horizontal  Hot-Water Boilers

Capacity: 350 kW – 2,800 kW (0.35 – 2.8 MW)
Core selling point: Proven, robust design with balanced cost and maintainability.
Technical / operation highlights:

• Classic fire-tube construction delivers stable heat exchange and long service life.

• Available in condensing variants to boost efficiency at low return temperatures.

• Smooth integration with building HVAC and domestic hot water systems.

• Service-friendly layout for fast routine maintenance and repairs.
  Typical applications: Medium-sized commercial buildings, schools, larger hotels, and light industry.
  Tagline: Reliable mid-range solution — durable, serviceable, cost-effective.

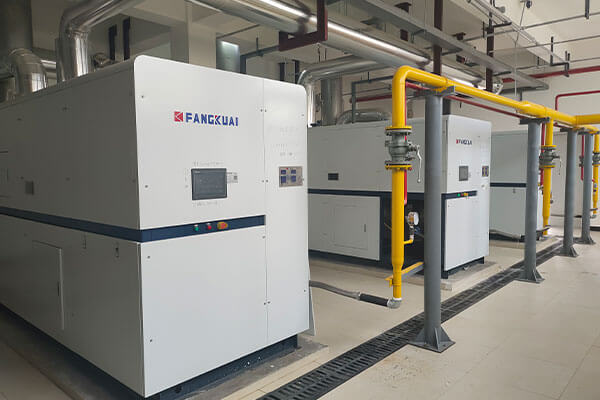

3. Vacuum Hot-Water Boilers (T6 / T7 Series)

Capacity: 0.7 MW – 70 MW (700 kW – 70,000 kW)
Core selling point: High power density with compact footprint and enhanced safety for urban sites.
Technical / operation highlights:

• Vacuum/negative-pressure design lowers boiling risk and reduces scaling and corrosion.

• Compact, modular units save valuable plant room space for dense urban installations.

• Fast response and stable operation under fluctuating loads; good for frequent start/stop duty.

• Compatible with low-NOx burners and emissions controls to meet strict urban regulations.
  Typical applications: Multi-building campuses, hospitals, large commercial clusters, and city-center installations.
  Tagline: Urban-scale heating — high output, small footprint, and enhanced safety.

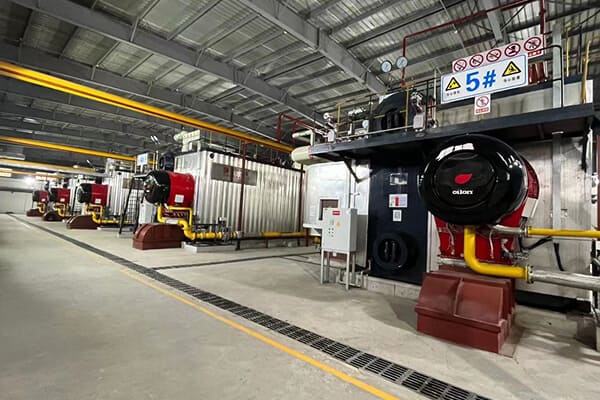

4. Water-Tube Hot-Water Boilers

Capacity: 10 MW – 140 MW
Core selling point: High flow, high efficiency and stable operation for large centralized heating.
Technical / operation highlights:

• Water flows inside tubes heated externally — excellent heat transfer and suited to continuous high-power operation.

• Can be designed for higher pressures to reduce distribution losses over long pipelines.

• Strong maintainability with sectional access and staged inspection/repair.

• Integrates well with waste-heat recovery and multi-fuel combustion trains for improved energy utilization.
  Typical applications: District heating plants, industrial parks, large transport hubs (stations, airports), and major public venues.
  Tagline: Heavy-duty backbone for district and industrial heat — large capacity, reliable output.

5. Skid-Mounted / Packaged Hot-Water Systems

Capacity: Module capacity × module count (examples: 1 MW × 3 = 3 MW, 35 MW × 5 = 175 MW, 50 MW × 7 = 350 MW)
Core selling point: Factory-integrated, plug-and-play systems for fast delivery and straightforward scaling.
Technical / operation highlights:

• Factory pre-assembled with boilers, pumps, valves, controls and instrumentation — minimal site work required.

• Standardized modules can be paralleled for phased expansion or N+1 redundancy.

• Ideal for rental, emergency, or temporary plants and sites with restricted onsite installation capacity.

• Optionally pre-fitted with water treatment, softening, and remote monitoring systems.
  Typical applications: Rapid-deployment projects, temporary/heavy-duty sites, remote installations, and staged build-out projects.
  Tagline: Fast to deliver and easy to scale — factory-built modules reduce site risk and commissioning time.

Which hot-water boiler should you choose? (practical guidance)

Selecting the right boiler depends on application type, required heating capacity, floor area served, and whether you also need domestic hot water or modular redundancy. Below are practical scenarios and recommended approaches:

• Small commercial area — ~3,000 m² (example)
  For a small commercial block around 3,000 m², a compact solution is often best. Two 200 kW vertical hot-water boilers operated in parallel provide redundancy (n+1) and can meet typical heating loads. If domestic hot water is also required, add 1–2 additional vertical units sized to cover peak DHW demand (based on occupants and target outlet temperatures). This keeps footprint small while ensuring capacity and redundancy.
• Mid-size office building or small/medium hotel — ~10,000 m²
  Consider vacuum hot-water boilers (T6 series) in modular banks. Single-unit ranges for these types typically start around 0.7 MW and go upward (T6 models commonly quoted in 0.7–2.8 MW ranges), and they are designed for modular expansion and clean operation in urban environments. Their compact size and high efficiency make them suitable for city buildings with strict emission limits.
• Large public venues — stations, airports, communities, pools
  For very high or continuous loads, vacuum T7 units or water-tube hot-water boilers are appropriate. T7-style vacuum boilers can start around several MW and water-tube boilers scale to tens of MW. Manufacturers supply single units from a few MW up to dozens of MW (e.g., 2.8 MW up to 70 MW on some large water-tube designs), making them suitable for district heating, large pools, or massive public buildings.
• District heating and heating stations
  Water-tube hot-water boilers are often chosen for district heating because they deliver high thermal efficiency, stable operation, can be built for higher pressures, and reduce distribution losses when combined with proper pumping and insulation. They’ve been used in many large heating projects and even in major event infrastructure. For example, large water-tube boilers were supplied to auxiliary projects for the 2022 Winter Olympics venues in Zhangjiakou to meet heavy, centralized heating demands.

How to Size a Hot Water Boiler System (short checklist)

1. Calculate peak heating load (kW or MW) from building heat loss or process requirements.
2. Decide redundancy (n+1 recommended for critical sites).
3. Decide if domestic hot water is required and size DHW separately (peak flow and temperature rise).
4. Choose technology that fits emissions, space, and efficiency goals (condensing, vacuum, water-tube).
5. Consider packaged/skid units for rapid installation and minimized site piping.

Conclusion

There’s no one-size-fits-all hot-water boiler. Small footprints and redundancy favor vertical boilers, while mid-range modular city projects often benefit from vacuum (T6/T7) solutions for compactness and high efficiency.

For very large or district systems, water-tube boilers deliver the required capacity and stability. Modular skid systems further reduce on-site work and speed up commissioning. Always match the boiler family and capacity to your precise heating load, redundancy requirements, emissions limits, and available space. Contact us today to discuss a tailored hot-water boiler solution for your project.

Hot Water Boiler FAQ

Q: Can a boiler provide domestic hot water (DHW)?
A: Yes — boilers can supply DHW via indirect tanks or heat exchangers. If DHW demand is high, size additional dedicated units or a buffer tank to avoid supply interruptions.

Q: Are vacuum hot-water boilers safe?
A: Yes — vacuum boilers operate under negative pressure in the combustion chamber, which reduces the risk of explosive failure and limits scaling/corrosion; they’re widely used in urban installations with strict safety and emission rules.

Q: What is the benefit of skid-mounted boilers?
A: Skid packages are factory-assembled with controls and ancillaries, reducing on-site work, shortening commissioning, and simplifying future maintenance or rental replacement.

Q: Do large events use these boilers?
A: Yes — FangKuai Boiler SZS hot water boilers have been supplied to some major projects, including auxiliary heating systems for the 2022 Winter Olympics venues.
