What are low-pressure and high-pressure steam boilers?

A low-pressure steam boiler is designed to produce steam at relatively low pressures — historically at or below 15 psi (≈103 kPa) for steam service — and is governed by simpler codes and safety requirements than high-pressure units. A high-pressure steam boiler operates above that threshold and can reach hundreds (or even thousands) of psi in industrial and power-generation settings; higher pressure means higher steam temperature and energy density.

low-pressure steam boiler e6

Key differences between low- and high-pressure steam boilers

• Operating pressure & temperature. Low-pressure systems run at ≤15 psi; high-pressure systems run above that and may operate at much higher temperatures. Higher pressure → more energy per kilogram of steam.

• Boiler type & construction. Low-pressure installations are often simpler (many fire-tube designs), while high-pressure plants typically use watertube designs and heavier construction, stricter material specs and more instrumentation.

• Distribution & piping size. Steam at higher pressure occupies less volume per unit mass, so for the same heat load the distribution mains can be smaller if steam is generated and carried at higher pressure (then reduced at point-of-use where required). That affects capital cost for piping and insulation.

• Control & water treatment. High-pressure boilers require tighter water chemistry control, more monitoring and stricter safety devices; low-pressure boilers are generally more forgiving and simpler to operate.

High-Pressure Steam Boilers NSZS Series (1.25 – 5Map)

Advantages and disadvantages

Low-pressure boilers — advantages

• Lower capital and installation complexity for many heating/process uses.

• Easier operation and less demanding water treatment and monitoring.

• Reduced regulatory burden in some jurisdictions (codes differ by region).

Low-pressure boilers — disadvantages

• Lower energy density: larger pipes and steam volumes needed for the same heat load.

• May not reach temperatures/pressures required for some industrial processes.

High-pressure boilers — advantages

• Much higher heat transfer per mass of steam — ideal when compact distribution or high temperatures are needed.

• More efficient for large-scale process heating and power generation when properly designed.

High-pressure boilers — disadvantages

• Higher capital cost, heavier construction and stricter safety/regulatory requirements.

• Requires more sophisticated control systems and rigorous water treatment programs.

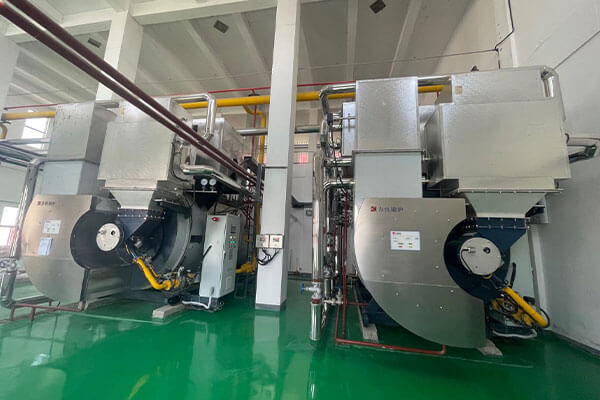

 Gas/Oil steam boiler E7 (<1.82Mpa)

Which industries use each type?

• Low-pressure boilers: commercial buildings, HVAC steam humidification, bakeries, small food plants, some sterilization or cleaning lines, smaller laundries and hospitals where process temperatures are modest.

• High-pressure boilers: large food & beverage plants (for certain cooking, sterilization or drying processes), chemical plants, refineries, paper mills, hospitals with central steam systems driving traps and turbines, and power plants. High-pressure steam is common where high-temperature processing or compact distribution is required.

Efficiency: low vs high pressure

Efficiency is not determined by pressure alone. In many systems:

• Generating steam at higher pressure can improve energy transmission efficiency (more energy per kg), reduce distribution losses for a given heat load and allow heat recovery arrangements (e.g., back-pressure turbines, multi-stage pressure reduction).

• But high-pressure boilers themselves are more complex and, if mismatched to the load, can be less economical (higher maintenance, need for strict water treatment). The best efficiency comes from matching boiler pressure to the plant’s process requirements and minimizing unnecessary pressure drops and heat losses.

Can a low-pressure boiler meet a food-factory’s steam needs?

Yes — many food plants use low-pressure steam successfully for heating, humidification, cleaning, blanching and indirect cooking where the required temperatures correspond to low-pressure steam saturation temperatures. However, suitability depends on the process: some cooking, sterilization, drying or high-throughput pasteurization processes require higher temperatures/pressures than low-pressure steam can provide. Before selecting equipment, you should:

1. Map each process point-of-use (required pressure/temperature and steam flow).

2. Size the boiler and distribution system for peak loads (consider condensate return).

3. Decide whether to generate steam at a higher pressure and reduce it where needed (this can shrink mains and improve economics), or to generate at the low pressure required by most processes.

Practical note: many plants produce steam at a higher system pressure and then use pressure-reducing valves or letdown stations to feed different process pressures — this is often more economical than oversized low-pressure piping.

Conclusion

After reading this article, you should have a clear understanding of how to choose between low-pressure and high-pressure steam boilers. Low-pressure steam boilers feature simpler designs and lower upfront costs, making them ideal for facilities with moderate steam demands. In contrast, high-pressure steam boilers provide greater thermal efficiency and energy density, meeting the requirements of large-scale and high-temperature processes across diverse industries.

The right choice depends on multiple factors — including process needs, energy efficiency objectives, piping infrastructure, safety regulations, and long-term operating costs. Conducting a comprehensive on-site steam system assessment is essential for making an informed decision.

For expert advice and tailored boiler solutions, contact us today to explore the best option for your operation.

FAQ

Q: What pressure defines “low” vs “high” steam boilers?
A: The common practical breakpoint is 15 psi for steam — ≤15 psi is low pressure, above that is high pressure for boiler classifications.

Q: Is steam quality (dryness) better at high or low pressure?
A: Steam quality depends on boiler design and water level control. Higher pressure can produce drier steam if the boiler and separators are well designed, but operators must control carryover and moisture regardless of pressure.

Q: Should I always generate at high pressure and reduce down for processes?
A: Not always — it can be efficient (smaller mains) but adds complexity and cost. Many plants do this successfully, but you should run a cost/benefit steam-system study first.

Q: What’s the single best step before buying a boiler?
A: Perform a detailed steam-demand and distribution study: measure peak and average loads by process, evaluate condensate return, and model piping size and losses. That study will point you to the correct pressure class and equipment.
