What is a boiler PLC system?

A boiler PLC system is a control architecture built around a Programmable Logic Controller (PLC): an industrial, rugged digital controller that continuously reads field sensors (level, pressure, temperature, flow, flame detectors, etc.), executes deterministic control and safety logic, and drives outputs such as fuel valves, air dampers, feedwater pumps and alarms. In modern boiler rooms the PLC acts as the central automation brain, often hosting burner-management routines, operator HMI screens, data logging and communications to SCADA or building-management systems.

FangKuai Boiler PLC main controller operation interface (supports Chinese and English)

How a boiler PLC control system works

A PLC-based boiler control follows a simple looped pattern: sense → decide → act.

• Sense: field devices (transmitters, switches, thermocouples, flame detectors) provide live measurements and status to the PLC’s I/O modules.
• Decide: the PLC runs programmed logic—sequences, interlocks, PID loops, lead/lag algorithms and safety checks—to determine actuator commands and alarm states. Typical functions include burner sequencing, interlock enforcement, firing-rate control and event logging.
• Act: the PLC commands actuators (modulating valves, motor starters, VFDs, control valves), updates HMI/SCADA, and initiates trips if a safety condition is detected. Well-designed PLC systems separate safety-critical functions (burner management) from supervisory functions and include diagnostics and trend recording for troubleshooting.

Advantages of using PLCs for boiler control

Using PLCs for boiler control delivers several practical benefits:

• Reliability and industrial suitability: PLC hardware is designed for 24/7 operation in harsh environments, giving high availability for critical thermal equipment.
• Safety and standards compliance: PLC-based burner-management or BMS implementations can be designed to meet recognized safety standards and SIL/FM requirements when required, improving protection during startup, operation and shutdown.
• Flexibility and maintainability: Control logic, operator screens and alarm limits are software-managed, which simplifies updates, retrofits and feature additions without major rewiring. Diagnostics, clear fault codes and modular I/O speed troubleshooting and spare-parts management.
• Efficiency and integration: Precise control of air–fuel ratio, firing modulation and load sharing reduces fuel consumption, emissions and wear. PLCs also integrate with SCADA or BMS for trending, energy optimization and remote monitoring.

What is Boiler PLC three-element (3-element) control?

Three-element control is a drum-level strategy used on steam boilers that combines three measurements—drum level, steam flow (or steam demand), and feedwater flow—to achieve stable and rapid level control. Drum level alone is a lagging measurement and is affected by swell and shrink when steam flow changes; by using steam flow as a feed-forward signal and cascading the level controller to a feedwater flow controller, the system anticipates load changes and commands feedwater so that level excursions are minimized. This scheme is the recommended approach where load changes are frequent, boiler capacity or pressure is large, or tight level control is required for safety and performance.

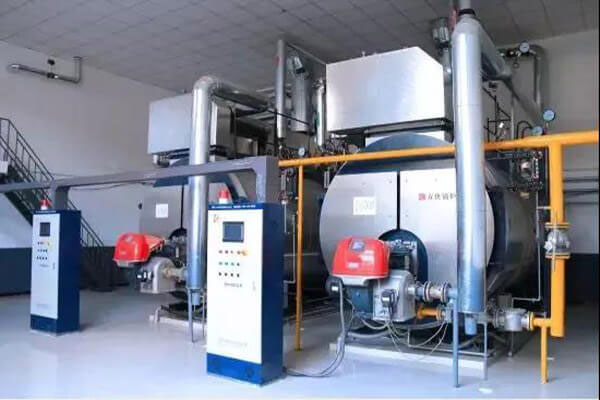

FangKuai Steam Boiler and PLC controller

Which boilers are best suited for PLC control?

PLCs are suitable for almost any commercial or industrial boiler installation, but they are especially valuable for:

• Medium to large steam boilers and high-pressure units where precise control and safety are critical.
• Multi-boiler plants that require master/lead-lag coordination, load sharing and plant optimization.
• Packaged or modular plants that need coordinated sequencing and remote monitoring.
• Systems requiring integration with SCADA/BMS, advanced diagnostics, data logging or energy-management programs.

For very small, simple, low-risk residential or single-burner units, a dedicated burner controller or simple microcontroller panel can be more cost-effective; however, even many retrofits replace outdated relay logic or analog controllers with PLCs because of the long-term benefits in maintainability and data visibility. Selection should consider capacity, pressure, required sequences (e.g., three-element control), safety/regulatory obligations, and the owner’s maintenance capabilities.

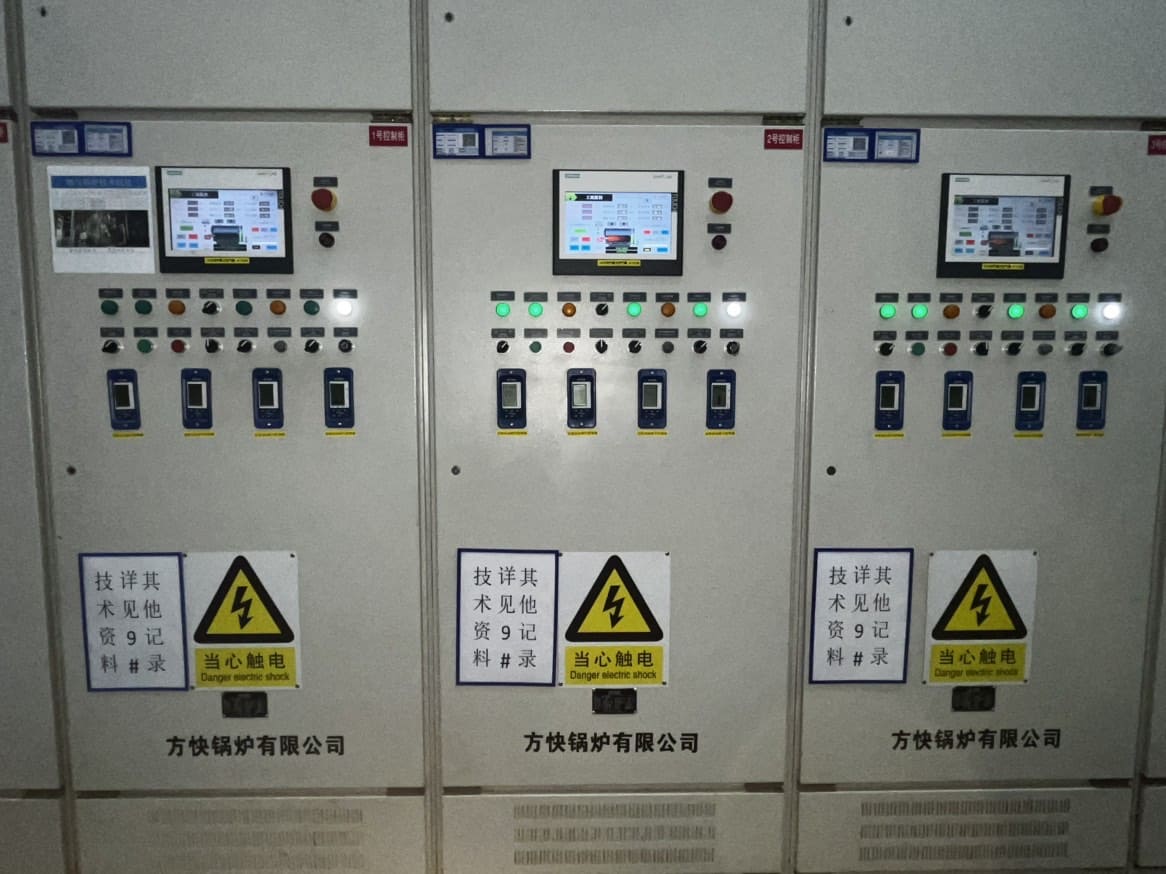

Boiler PLC control cabinet

Conclusion

A PLC-based control system brings deterministic control, safety, diagnostics and connectivity to boiler plants. Whether designing a new installation or planning a retrofit, a well-engineered PLC solution enables reliable combustion management, tighter drum-level control (including three-element strategies), better fuel efficiency and easier integration with plant automation systems. When safety or performance is critical, specify certified burner-management logic, appropriate I/O redundancy or SIL ratings as required by codes and operational risk.

Boiler PLC FAQ

Q: Does PLC control replace the burner management system (BMS)?
A: No—PLC control often hosts the BMS or interfaces to a dedicated BMS module. The BMS implements the strict safety sequencing for ignition, purge, flame monitoring and safe shutdown; it can be integrated within a PLC architecture or provided as a certified standalone safety controller.

Q: Can I retrofit my old boiler with a PLC?
A: Yes. Retrofits are common and typically replace antiquated relay panels or analog controllers with PLC hardware, modern I/O, and HMI/SCADA—improving diagnostics, efficiency and safety. Retrofitting requires planning for sensors, safety validation and functional testing.

Q: How much maintenance does a PLC system need?
A: Routine maintenance is minimal for the PLC itself, but attention should be given to field devices (sensors, transmitters, flame detectors), backup batteries, I/O modules and software backups. Regular testing of safety interlocks and review of logged events is essential.

Q: Is a PLC the same as a DCS for boiler control?
A: Not exactly. A PLC is a discrete industrial controller that’s ideal for drum, burner and skidded boiler control; a DCS is a higher-level distributed control architecture often used for very large plants. Many modern solutions blend PLCs for fast I/O and a supervisory system (SCADA/DCS) for plant-wide coordination.

Q: What are the key safety features to look for in a PLC boiler system?
A: Certified burner-management routines, independent safety interlocks (hardwired where required), proven trip logic, fail-safe I/O, redundancy options (if needed), and compliance with applicable codes or standards. Vendor documentation and third-party certificates are important.

Q: How does a PLC help save fuel?
A: By enabling precise air/fuel ratio control, optimized firing modulation, and plant-master load sharing, PLC control reduces overshoot and cycling—lowering unburned fuel losses and improving overall combustion efficiency. Trending and analysis tools also help identify opportunities for tuning.
