How Much Natural Gas Does a 1 Ton Gas Steam Boiler Consume?

If you operate or plan to purchase a 1 ton gas steam boiler, one of the most common questions is: how much natural gas does it consume per hour? This is crucial for estimating operational costs and ensuring energy efficiency. In this article, we will explore the gas consumption of a 1 ton gas steam boiler, including formulas, heat output, natural gas calorific value, and the impact of steam boiler efficiency. We will also compare ordinary gas steam boilers with condensing types to help you make informed decisions.

How Much Natural Gas Does a 1 Ton Gas Steam Boiler Use in One Hour?

A 1 ton gas steam boiler is designed to produce 1 ton of steam per hour under standard conditions. The natural gas consumption depends on factors like boiler design, operating pressure, and fuel quality. On average, a 1 ton gas steam boiler may consume between 70 to 80 cubic meters of natural gas per hour. However, this is a rough estimate, and actual consumption can vary. To get precise figures, it’s essential to understand the underlying calculations and efficiency metrics.

The question of “how much natural gas does a 1 ton gas steam boiler use?” is frequently asked by industry professionals. This highlights the importance of energy management in industrial and commercial applications. By delving into the details, we can optimize performance and reduce costs.

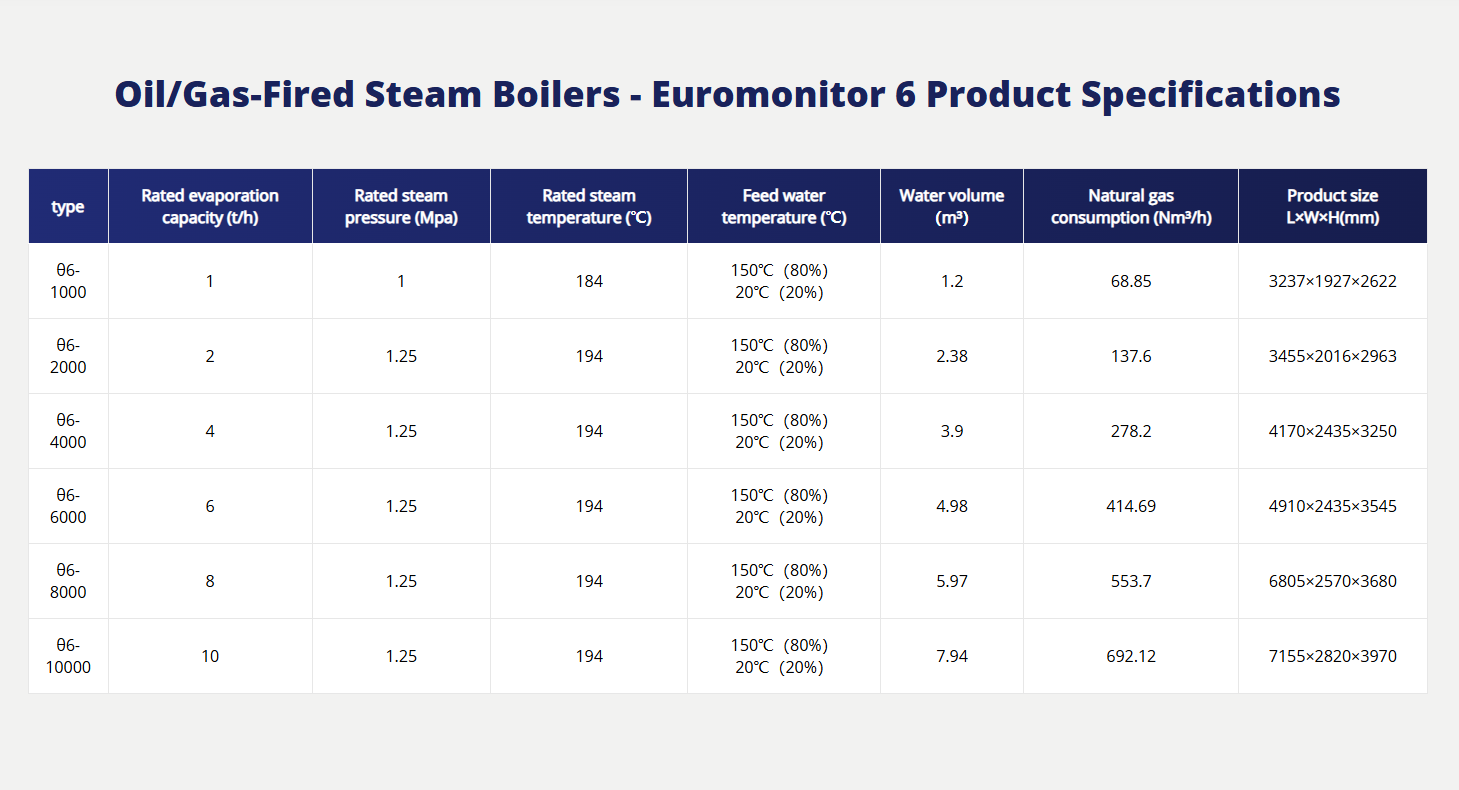

Gas steam boiler parameter table

Formula for Calculating Gas Consumption of a Gas Steam Boiler

The gas consumption of a gas steam boiler can be calculated using a standard formula. This formula considers the boiler’s heat output and the calorific value of natural gas. Specifically, for a 1 ton gas steam boiler, the hourly gas consumption (in cubic meters) is given by:

Gas Consumption = (Heat Output per Hour) / (Calorific Value of Natural Gas × Boiler Efficiency)

Here, the heat output is measured in kilocalories (kcal) or megajoules (MJ), and the calorific value is the energy content of the gas. Boiler efficiency, expressed as a percentage, reflects how well the gas steam boiler converts fuel into usable heat. This formula is fundamental for estimating fuel needs and evaluating the performance of any gas steam boiler.

Applying this formula requires accurate data on heat output and gas properties. For instance, a 1 ton gas steam boiler typically has a specific heat output, which we will discuss next. Understanding this calculation helps in comparing different models and improving overall steam boiler efficiency.

How Much Heat Does a 1 Ton Gas Steam Boiler Produce in One Hour?

A 1 ton gas steam boiler is rated to produce 1 ton of steam per hour, which corresponds to a specific heat output. In energy terms, producing 1 ton of steam requires approximately 600,000 kilocalories (kcal) of heat per hour. This value is based on the latent heat of vaporization and the temperature rise of water. Therefore, the heat output of a 1 ton gas steam boiler is around 600,000 kcal/hour.

This heat output is essential for various industrial processes, such as heating, sterilization, and power generation. The consistency of a gas steam boiler in delivering this heat directly impacts productivity. By knowing the heat output, users can better assess the gas consumption and operational costs of their 1 ton gas steam boiler.

Get a quote for a gas steam boiler

What Is the Calorific Value of Natural Gas?

The calorific value of natural gas refers to the amount of energy released when a unit volume of gas is burned. Typically, natural gas has a calorific value ranging from 8,500 to 10,000 kcal per cubic meter, depending on the gas composition and source. For calculation purposes, an average value of 9,000 kcal/m³ is often used.

This value is critical in determining the gas consumption of a gas steam boiler. Higher calorific values mean less gas is needed to produce the same amount of heat, thereby improving steam boiler efficiency. When selecting a 1 ton gas steam boiler, it’s advisable to verify the local natural gas specifications to ensure accurate consumption estimates.

Efficiency of Gas Steam Boilers

The efficiency of a gas steam boiler is a key factor influencing gas consumption. It measures how effectively the boiler converts the energy in natural gas into steam. Higher efficiency means lower fuel costs and reduced environmental impact. There are two main types of gas steam boilers: ordinary and condensing models, each with different efficiency levels.

Ordinary Gas Steam Boiler
Ordinary gas steam boilers, also known as non-condensing boilers, typically have efficiencies between 85% and 92%. These boilers release hot flue gases, which contain latent heat that is not recovered. As a result, some energy is wasted, leading to higher gas consumption. For a 1 ton gas steam boiler of this type, the gas usage might be on the higher end of the range, around 75-80 m³ per hour.

Despite their lower efficiency, ordinary gas steam boilers are still widely used due to their lower initial cost and simplicity. However, in the long run, their higher operating costs can be a drawback. Improving maintenance and optimizing operation can help enhance steam boiler efficiency in these units.

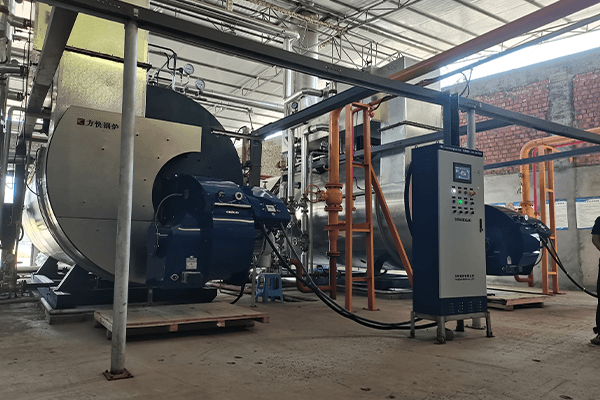

Condensing Gas Steam Boiler
Condensing gas steam boilers are designed to achieve higher efficiencies, often exceeding 95%. They recover heat from the flue gases by condensing water vapor, thus utilizing more energy from the natural gas. This makes them more fuel-efficient and environmentally friendly. For a 1 ton gas steam boiler with condensing technology, gas consumption could be as low as 65-70 m³ per hour.

Investing in a condensing gas steam boiler can lead to significant savings on natural gas bills. Additionally, these boilers contribute to better steam boiler efficiency and lower carbon emissions. When considering a 1 ton gas steam boiler, evaluating the long-term benefits of condensing models is wise.

How Much Natural Gas Does a 1 Ton Gas Steam Boiler Consume? A Detailed Calculation

Let’s apply the formula to estimate the gas consumption of a 1 ton gas steam boiler. Assume the heat output is 600,000 kcal/hour, the calorific value of natural gas is 9,000 kcal/m³, and the boiler efficiency is 90% (0.9). Plugging these into the formula:

Gas Consumption = 600,000 / (9,000 × 0.9) = 600,000 / 8,100 ≈ 74.1 m³/hour

This calculation shows that a 1 ton gas steam boiler with 90% efficiency consumes about 74 cubic meters of natural gas per hour. If the efficiency drops to 85%, consumption would increase to around 78.4 m³/hour. Conversely, a condensing gas steam boiler with 95% efficiency might use only about 70.2 m³/hour. Thus, steam boiler efficiency plays a vital role in determining gas usage.

Conclusion

In summary, the natural gas consumption of a 1 ton gas steam boiler typically ranges from 70 to 80 m³ per hour, depending on factors like heat output, calorific value, and boiler efficiency. By using the gas consumption formula and understanding the differences between ordinary and condensing gas steam boilers, users can optimize their operations. Prioritizing high steam boiler efficiency not only reduces costs but also supports sustainability goals. When selecting a 1 ton gas steam boiler, consider conducting a thorough energy audit to ensure optimal performance.

FAQ

Q1: What is the average gas consumption of a 1 ton gas steam boiler?
A: On average, a 1 ton gas steam boiler consumes between 70 to 80 cubic meters of natural gas per hour, but this can vary based on efficiency and operating conditions.

Q2: How can I improve the steam boiler efficiency of my gas steam boiler?
A: To improve steam boiler efficiency, regularly maintain the boiler, insulate pipes, use high-quality fuel, and consider upgrading to a condensing gas steam boiler. Monitoring systems can also help optimize performance.

Q3: Does the type of natural gas affect the consumption of a 1 ton gas steam boiler?
A: Yes, the calorific value of natural gas varies. Higher calorific values reduce gas consumption, so it’s important to know your gas supply specifications when calculating for a gas steam boiler.

Q4: Why choose a condensing gas steam boiler over an ordinary one?
A: Condensing gas steam boilers offer higher efficiency (over 95%), leading to lower gas consumption and cost savings. They are more environmentally friendly and ideal for long-term use compared to ordinary gas steam boilers.

Q5: How often should I check the efficiency of my gas steam boiler?
A: It’s recommended to assess steam boiler efficiency at least annually through professional audits. Regular checks help maintain optimal performance of your 1 ton gas steam boiler and prevent energy waste.
