How to Choose a Steam Boiler for the Chemical Industry

1. Introduction — Boiler selection for the chemical industry

Choosing the right steam boiler is a strategic decision for any chemical plant. The correct solution reduces operating cost, improves process stability, lowers emissions, and ensures uninterrupted production. This guide focuses on the chemical industry and explains common boiler types, fuel options, sizing methodology, a real project case, FAQs, and clear recommendations.

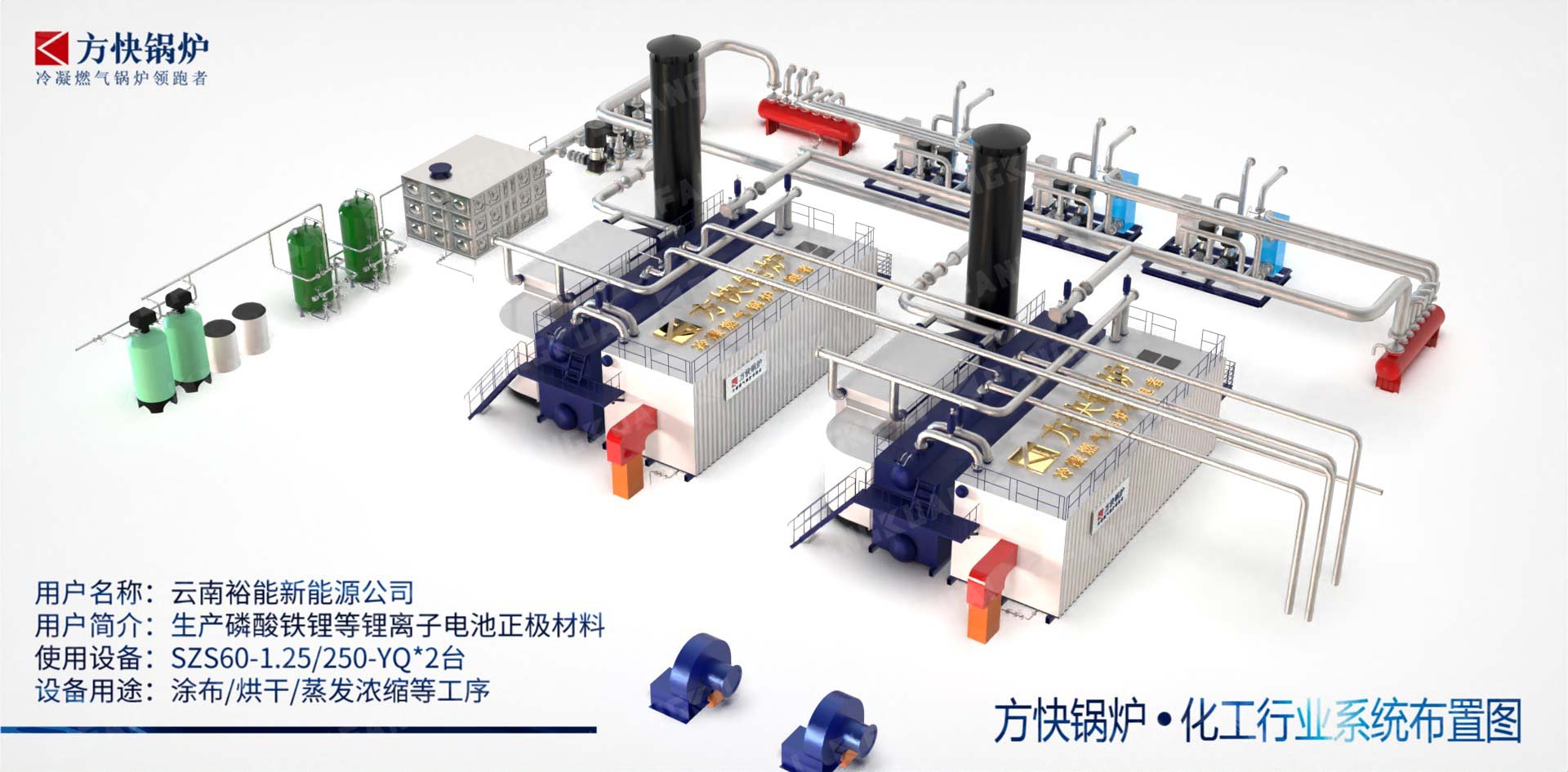

Fangkuai Boiler provided a boiler solution for a chemical plant

2. Common steam boiler types used in chemical plants

2.1 Fire-tube boilers (typical mid-range choice for chemical plants)

Fire-tube boilers (e.g., WNS series) are compact, cost-effective, and well suited for small to mid steam loads (commonly 1–30 t/h). They are often chosen by chemical plants with moderate pressure requirements and less extreme load swings.

2.2 Water-tube boilers (for high capacity and high pressure)

Water-tube boilers are preferred for large capacity, high pressure, or when fast load response is required. They are common in larger chemical facilities, central utilities, or when multiple processes demand high-pressure steam.

2.3 Modular or package boilers (flexible redundancy)

Modular packages allow multiple smaller boilers to operate in parallel. This strategy increases operational flexibility and provides redundancy during maintenance — an attractive option for many chemical plants that want staged capacity and efficient turndown.

2.4 Electric boilers and steam generators (clean but cost-sensitive)

Electric steam boilers emit no combustion flue gases and are useful for small, clean-process needs, pilot plants, or where local emission rules are strict. Running cost depends heavily on electricity price.

2.5 Waste-heat, biomass or fuel-specific boilers (site-specific solutions)

Where process waste heat, exhaust gases, or low-cost biomass is available, custom solutions can recover energy and reduce fuel bills. Such designs require careful materials and corrosion analysis in chemical environments.

3. Steam Boiler fuel types — pros and cons for chemical plants

• Natural gas (gas steam boiler) — clean combustion, fast response, easier emissions compliance. Usually the preferred choice for modern chemical plants where gas supply is available.

• Fuel oil — flexible supply options in some regions, but higher emissions and storage/handling considerations.

• Coal / biomass — lower fuel cost potential in some markets but higher capital and environmental control costs.

• Electric — zero onsite combustion emissions; economical only where electricity is low-cost or when small/clean steam is required.

• Waste heat recovery — most energy-efficient when applicable; depends on process exhaust characteristics and temperature levels.

Recommendation: For most modern chemical plants seeking both compliance and operational flexibility, a high-efficiency gas steam boiler is the first choice when natural gas is available.

4. How to select boiler capacity (t/h) for a chemical plant

1. List all steam consumers — identify every steam-consuming item (reactors, dryers, heat exchangers, steam jackets, stripping, CIP/sterilization, instrument/utility uses). Estimate each device’s steam demand in kg/h or t/h.

2. Calculate peak and average loads — sum instantaneous peak demands and average running demands separately.

3. Apply simultaneity / diversity factors — not every device peaks at once. Use historical plant data or conservative engineering diversity factors to avoid oversizing.

4. Provide redundancy and spare capacity — allow 5–15% design margin and plan for backup (e.g., two boilers in parallel) so you can take one offline without production loss.

5. Match steam pressure to process needs — choose a boiler rated for the required process pressure (e.g., 0.6 MPa, 1.25 MPa). Higher pressures affect steam properties and equipment.

6. Consider energy-saving options — economizer, blowdown heat recovery, condensate return and advanced burner control will improve effective capacity and reduce fuel consumption.

(Use the terms chemical industry and chemical plant when naming equipment and documentation to improve SEO and relevance.)

5. Case study — Henan Haohua Aerospace Chemical Co., Ltd. (project data)

• Client: Henan Haohua Aerospace Chemical Co., Ltd.

• Product / Capacity: 50,000 t/year of calcium aluminate powder.

• Installed Boiler: WNS20-1.25-YQ (20 t/h, 1.25 MPa, natural gas).

• Outcome (client reported): Overall energy efficiency improved by ≈15%; annual natural gas cost savings estimated at $100,000–$150,000.

Note: reported savings are client-supplied and depend on local fuel prices, load profile, and implemented energy-saving measures (e.g., economizer installation, burner tuning, improved automation). For marketing or technical publication, present the data as “client reported” and, if possible, attach pre/post operation performance tables.

6. Frequently Asked Questions (FAQ)

Q1 — Fire-tube or water-tube for a chemical plant?
A: For 1–30 t/h and moderate pressures, a high-efficiency WNS-style fire-tube gas steam boiler often gives the best balance of cost and performance. For larger capacity or higher pressure, use water-tube.

Q2 — Is a gas steam boiler always the best choice?
A: If natural gas is available and emission control is a priority, gas steam boilers typically offer the best combination of cleanliness, control, and lifetime costs. Site fuel economics can change the decision.

Q3 — What energy-saving upgrades matter most?
A: Economizers (preheating feedwater), condensate return, efficient burners, low-NOx combustion systems, and advanced control/monitoring — all lower fuel use and pay back over time.

Q4 — How do I avoid oversizing the boiler?
A: Use measured steam load data and diversity factors; prefer modular/parallel boilers where possible so the plant can stage capacity to match demand.

7. Conclusion & recommendations

• Start with a detailed steam load audit for the chemical plant; it is the single most important step.

• If natural gas is available, select a high-efficiency gas steam boiler (e.g., modern WNS series with economizer) for typical mid-range chemical plant needs.

• For large capacity or high pressure, consider water-tube boilers or modular multi-boiler systems.

• Always evaluate energy recovery (waste heat, condensate return) and automation to maximize lifecycle savings — as shown in the Henan Haohua case.
